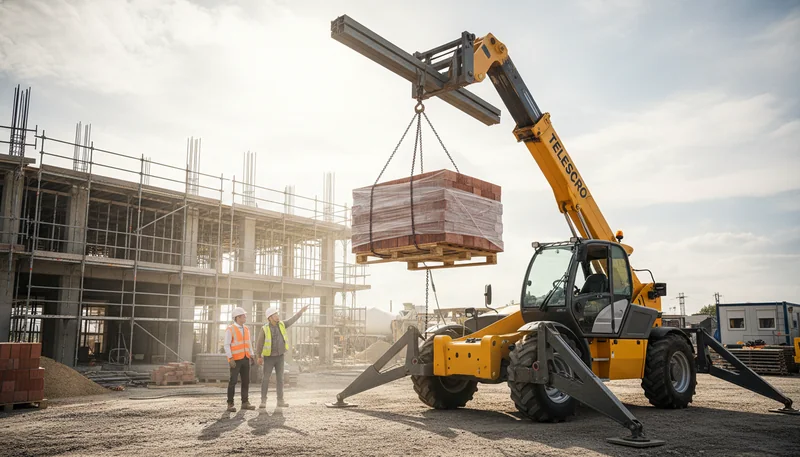

Telehandler Stabilizers: What Buyers Overlook About Safe Operation

From my experience helping equipment buyers from Brazil to Belgium, the biggest mistake I see is treating telehandler stabilizers as “optional legs”—just something to use if you remember or have extra time. But stabilizers are actually a core safety system, not a minor feature you can skip.

In this article, I’ll explain what stabilizers really do for telehandlers—how they work, when they’re essential, and why they make such a difference to both lifting capacity and day-to-day safety.

If you’re comparing models or writing site rules, this is the detail most people overlook until it’s too late.

To be honest, understanding stabilizer use isn’t just about ticking a compliance box. It’s about making sure your investment performs safely, and I can tell you from four years in the field, that makes all the difference.

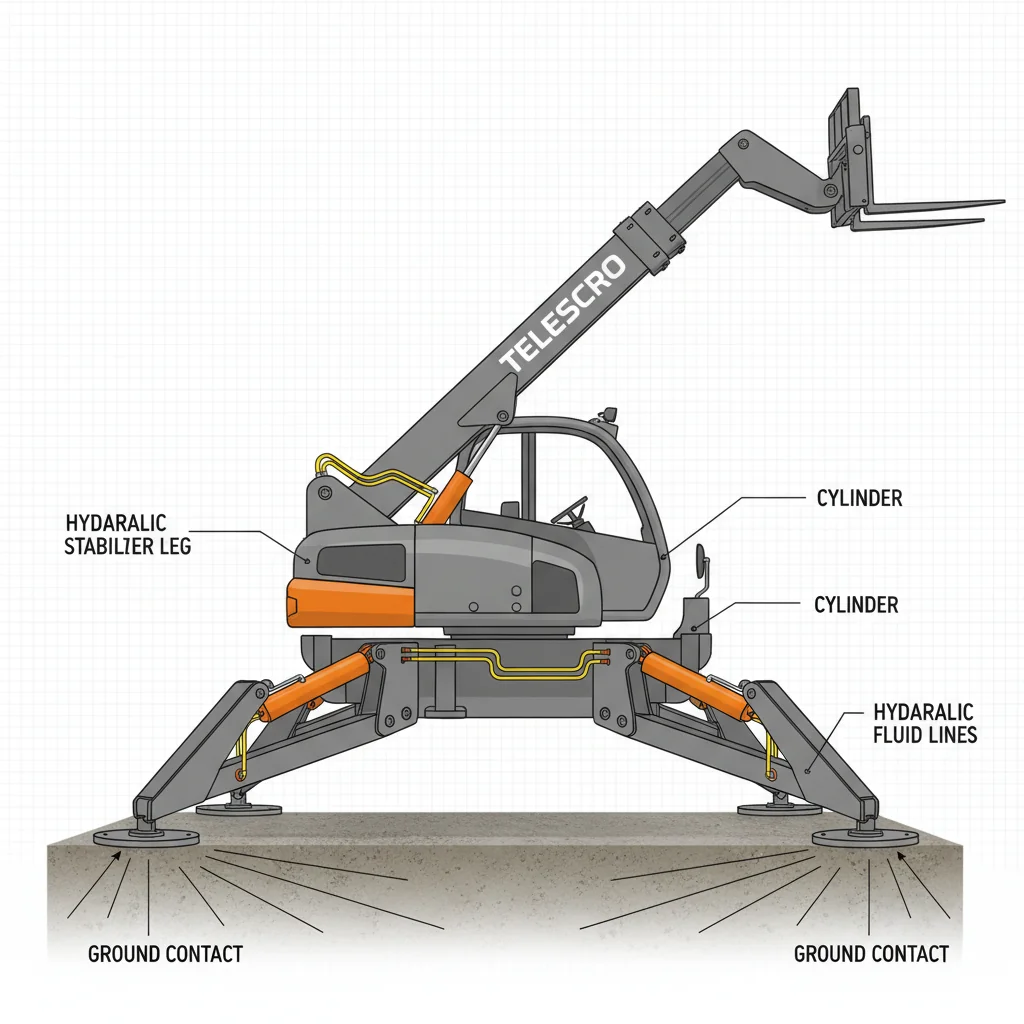

How Do Telehandler Stabilizers Work?

Telehandler stabilizers are hydraulic legs that extend outward and downward to widen the machine’s base, transferring load pressure to the ground. Using the main hydraulic system, they prevent tipping—especially at high boom angles—by creating a more stable footprint. Their operation directly depends on hydraulic fluid levels and ground conditions.

Most people don’t realize that stabilizers are far more than just “extra legs” for telehandlers. These hydraulic outriggers¹s](https://www.ls-importandexport.com/blog/how-does-the-outrigger-system-work-on-an-all-terrain-telehandler-1701535.html)[^7] actually transform the entire lifting capability of your machine. In practice, when you extend stabilizers outward and down, they widen the telehandler’s base by up to a meter on each side, transferring weight directly through the ground pads. Instead of relying just on tire contact, you create a stable platform that resists tipping—especially when lifting heavy loads with the boom raised high or fully extended.

A project manager in Dubai recently showed me their 4-ton telehandler with an 18-meter boom working on a tight site. The team tried to save time by skipping the stabilizer deployment for a roof truss lift at almost full height. On the machine’s load chart, rated capacity dropped from about 2,000 kg (with stabilizers fully deployed) to less than 900 kg without them. Their safety margin just disappeared. Luckily, their operator stopped when the moment indicator² started warning, but it could have ended much worse.

To be honest, I’ve seen hydraulic fluid checks overlooked too often—especially on busy sites in Brazil or Indonesia. If your stabilizer cylinders don’t extend fully due to low pressure, they can’t guarantee the rated base width or ground contact. That’s asking for trouble. Ground conditions matter too; always place the pads on firm, level surfaces. I suggest verifying stabilizer deployment and system pressure before any critical lift. Skipping these steps can quickly turn a reliable telehandler into a safety hazard and cut realistic capacity by over half.

Key takeaway: Stabilizers are a critical structural safety feature—not just optional supports. Always fully deploy them on appropriate, solid ground before lifting. Neglecting stabilizer use drastically reduces telehandler capacity and increases the risk of tipping accidents, potentially compromising safety and machine performance.

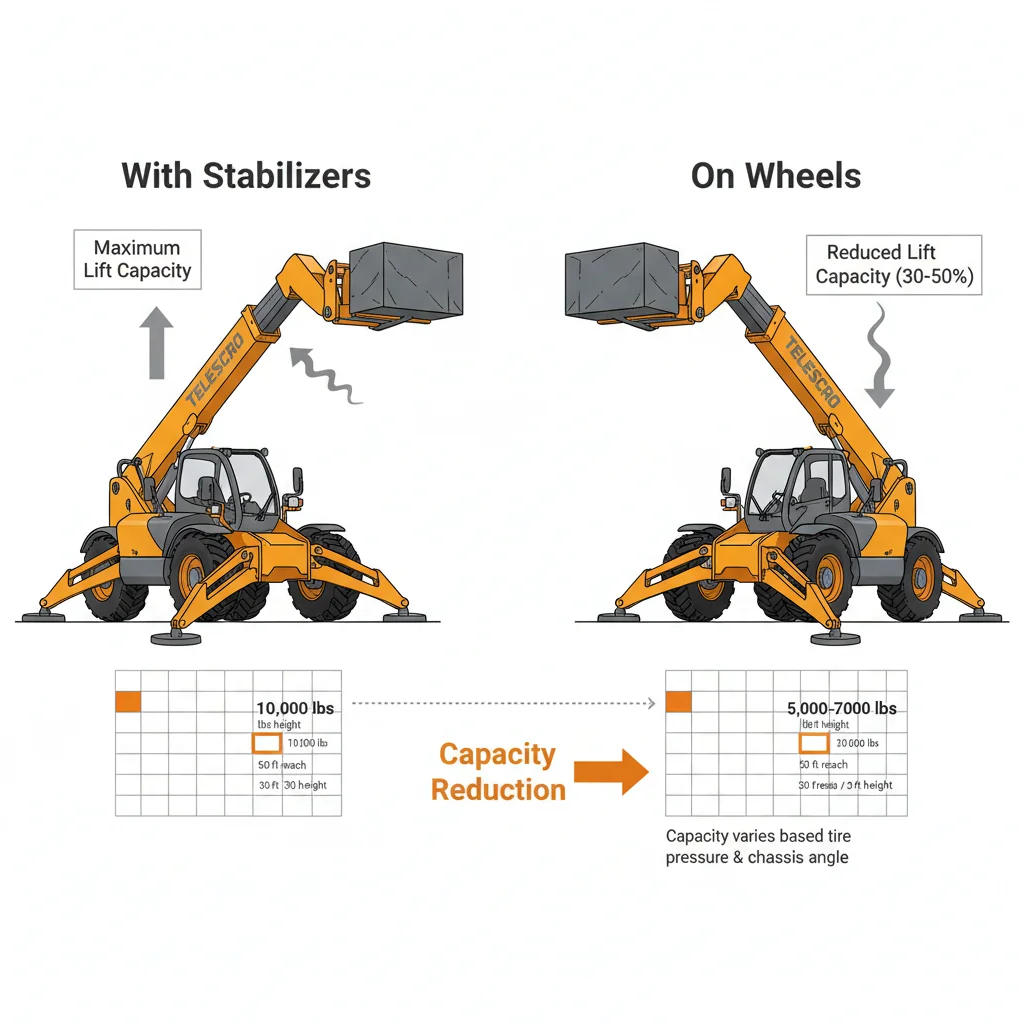

Do Stabilizers Affect Lift Capacity?

Telehandler maximum lift capacity figures typically assume stabilizers are deployed. Without them, rated capacity at full height or reach can decrease by 30–50%. Load charts display separate values for ‘with stabilizers’ and ‘on wheels,’ highlighting the crucial impact of stabilizer use on safe lifting performance.

Let me share something important about how stabilizers really affect telehandler lift capacity. Many buyers only glance at the big capacity number on the datasheet, but I see problems when those numbers meet reality on tough jobsites—especially at full extension. The load chart tells the real story, dividing safe loads between “with stabilizers” and “on wheels.” For example, in Singapore last year, a customer needed to lift steel beams to a 13-meter height, each weighing around 2,800 kg. His telehandler was rated for 4,000 kg—but only with stabilizers down. On tires alone at max reach, he was limited to less than 2,200 kg. That caught his crew off guard and caused serious delays.

I’ve worked on projects in Dubai and Brazil where crews lost days re-positioning machines simply because the stabilizer setup wasn’t considered in the planning. The difference is not small—a capacity drop of 30% to 50% is common, especially at maximum outreach. Even if your machine’s computer system offers automatic load moment indicators³ and boom angle sensors, those protections assume you’re following the setup instructions. If you skip the stabilizers to save time, the software can’t magically add more lifting strength.

Here’s my advice: treat load charts as your map, not just marketing. Look for the two separate lines—one for wheels, one for stabilizers. Compare those values to your actual lift tasks. I always suggest matching the real jobsite scenario, not just the headline number, before you decide.

Never rely solely on the advertised maximum lift capacity when selecting a telehandler. Always analyze load charts for both ‘with stabilizers’ and ‘on wheels,’ as stabilizer deployment can significantly affect safe lifting limits, especially at maximum height or outreach. Match your machine to real working scenarios.

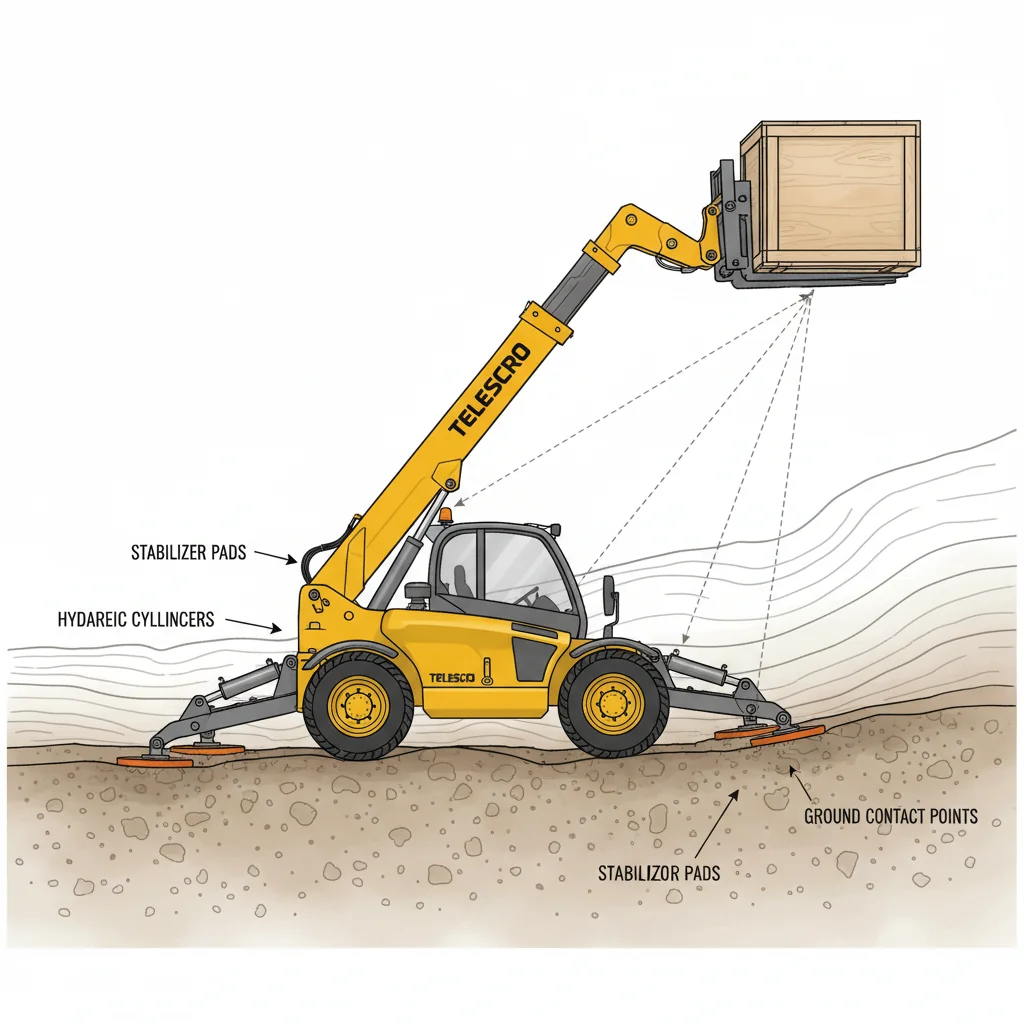

When Are Telehandler Stabilizers Needed?

Telehandler stabilizers are essential when handling heavy loads at height, working at maximum reach, operating on uneven or soft ground, or making precise movements near structures or personnel. Their use greatly reduces tipping risks in demanding construction, agricultural, and industrial applications.

The biggest mistake I see is operators trusting “solid-looking” ground more than the load chart. Take a project I supported in Dubai last year—crew needed to lift steel beams, about 2,500 kg, to the fifth floor using an 18-meter reach telehandler. On compacted fill, they skipped deploying stabilizers because everything seemed firm. The result? The telehandler started to tilt when they extended the boom past 15 meters. Luckily, the moment indicator alarmed, and no one got hurt, but it was a close call and the site manager tightened their safety protocol after that.

From my experience, stabilizers are absolutely essential whenever you’re near the limits—maximum boom height, long horizontal reach, or handling loads over 2,000 kg. Even when the ground “feels” stable, fill or pave jobs often hide softer patches underneath. I’ve seen this play out on job sites in Kenya and Kazakhstan; one operator managed a full day lifting concrete panels without stabilizers on leveled ground, but the second day, a masked sinkhole caused the machine to lean dangerously.

Operators sometimes skip stabilizers for low-level work, like moving a single hay bale in agriculture or unloading pallets at ground level. That’s usually fine if you stay well inside the rated capacity—say, under 1,000 kg, boom retracted, and stable surface. But lifting to stack bales two or three levels high? I always suggest using stabilizers before making that lift.

A practical policy for any team: if the boom is in the top third of its range, at near full extension, on a slope, or working close to people or obstacles, stabilizers should go down—no exceptions.

Key takeaway: Use stabilizers any time a telehandler operates near its load or reach limits, on challenging ground, or close to hazards. Setting internal rules for stabilizer deployment enhances safety, reduces tipping incidents, and ensures compliance with site and equipment guidelines.

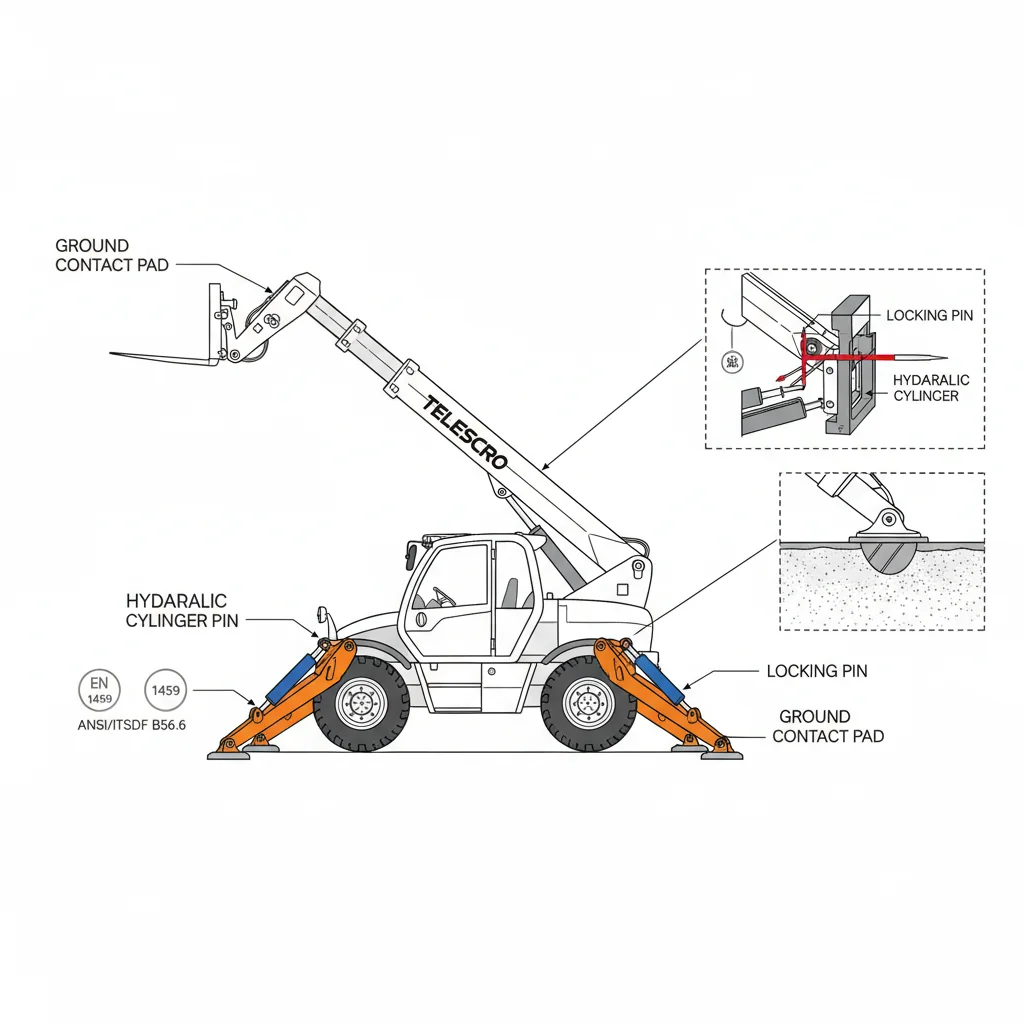

How Do Stabilizers Impact Telehandler Safety?

Stabilizers are essential for preventing telehandler tipping, directly influencing compliance with standards like EN 1459⁴ and ANSI/ITSDF B56.6. Operating without deployed stabilizers, when required, puts operators out of compliance—potentially invalidating insurance coverage and increasing liability in the event of an accident.

To be honest, a lot of operators underestimate what stabilizers really do until they face a close call. Earlier this year, I talked with a contractor in Dubai who was using a 4-ton telehandler with a 13-meter reach for panel installation. Their team needed to lift loads just under 3,000 kg at almost full extension, but didn’t bother deploying the stabilizers because space seemed “fine.” On the third lift, the rear tires started leaving the ground—luckily the operator stopped immediately. That job could have ended in disaster, all because the machine wasn’t set up in the proper, certified configuration.

Stabilizers are not just optional add-ons; every load chart factors them in. For example, a common 3.5-ton telehandler might handle 2,500 kg at 10 meters only when the stabilizers are fully extended. Without them, safe capacity drops significantly—sometimes by half or more. Operating outside those limits violates the EN 1459 and ANSI/ITSDF B56.6 standards. In the event of an accident, I’ve seen insurance companies in Kazakhstan and the UK reject claims, pointing to non-compliance as the reason. Even worse, some projects won’t pass safety audits without proper documentation showing stabilizer use during critical lifts.

Here’s what I recommend: train every operator to read the full load chart, not just the main specs. Make it company policy to record all lifts rated for stabilizer use. Align your safety manual and insurance documents to match. That’s what turns stabilizers into reliable controls—not afterthoughts.

Key takeaway: Proper use of telehandler stabilizers is a documented safety and compliance requirement. Failure to deploy them when necessary can nullify certifications, increase legal exposure, and jeopardize insurance validity. Training, policy alignment, and proper record-keeping turn stabilizers into essential, auditable risk controls for every safe lift.

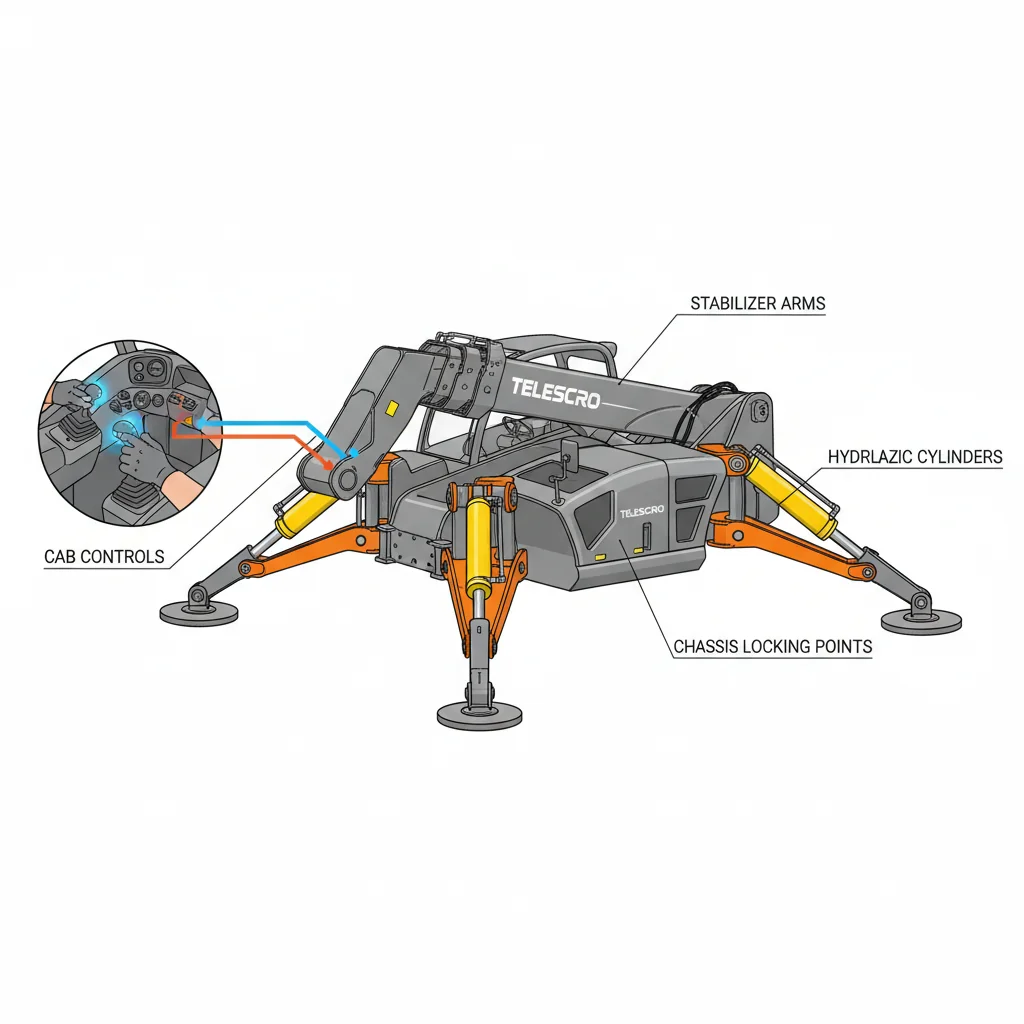

How Do Telehandler Stabilizers Boost Output?

Telehandler stabilizers increase daily productivity by minimizing chassis movement and enabling precise load placement, even at height or in tight spaces. With quick-deploy, cab-controlled functions, operators save several minutes per lift cycle, reduce fatigue, and maintain better control, especially during frequent, fine positioning tasks.

Last year, a project manager in Dubai asked me why his team fell behind schedule despite having a 4-ton telehandler. After a site visit, the issue was clear—constant repositioning, especially when lifting pallets to the third floor, ate up their time. Stabilizers, in this case, made all the difference. When deployed, they locked the chassis in place, even with the boom extended over 14 meters. Operators stopped worrying about the telehandler rocking or drifting while positioning heavy loads.

From my experience, stabilizers shine most in tight spaces. I saw this in Brazil, where a client needed to lift glass panels to 10 meters with only two meters of ground clearance on each side. With fast, cab-controlled stabilizers and auto-leveling, his operator set up safely within one minute per lift. Without this feature, they used to spend over five minutes adjusting and rechecking position each cycle. Over a ten-hour day, that difference added up to dozens of extra lifts.

The technical side comes down to stability and responsiveness. Engaging the outriggers—those robust support legs—means the boom responds immediately, and you get almost zero chassis roll. Fine placement, like sliding forks into narrow racking or stacking bales four meters high, becomes smoother. Operators here in China tell me they feel more in control, less exhausted, and can work with more confidence.

I suggest always verifying how quickly stabilizers deploy and reset on any model you consider. Saving minutes per cycle might sound small, but across hundreds of lifts, it transforms both productivity and jobsite safety.

Key takeaway: Selecting telehandlers with advanced, easy-to-use stabilizers can significantly enhance daily workflow. Operators experience less fatigue, safer handling, and save substantial time on repeated lift cycles—translating to higher throughput and efficiency on construction sites, farms, and warehouses where precision and productivity matter most.

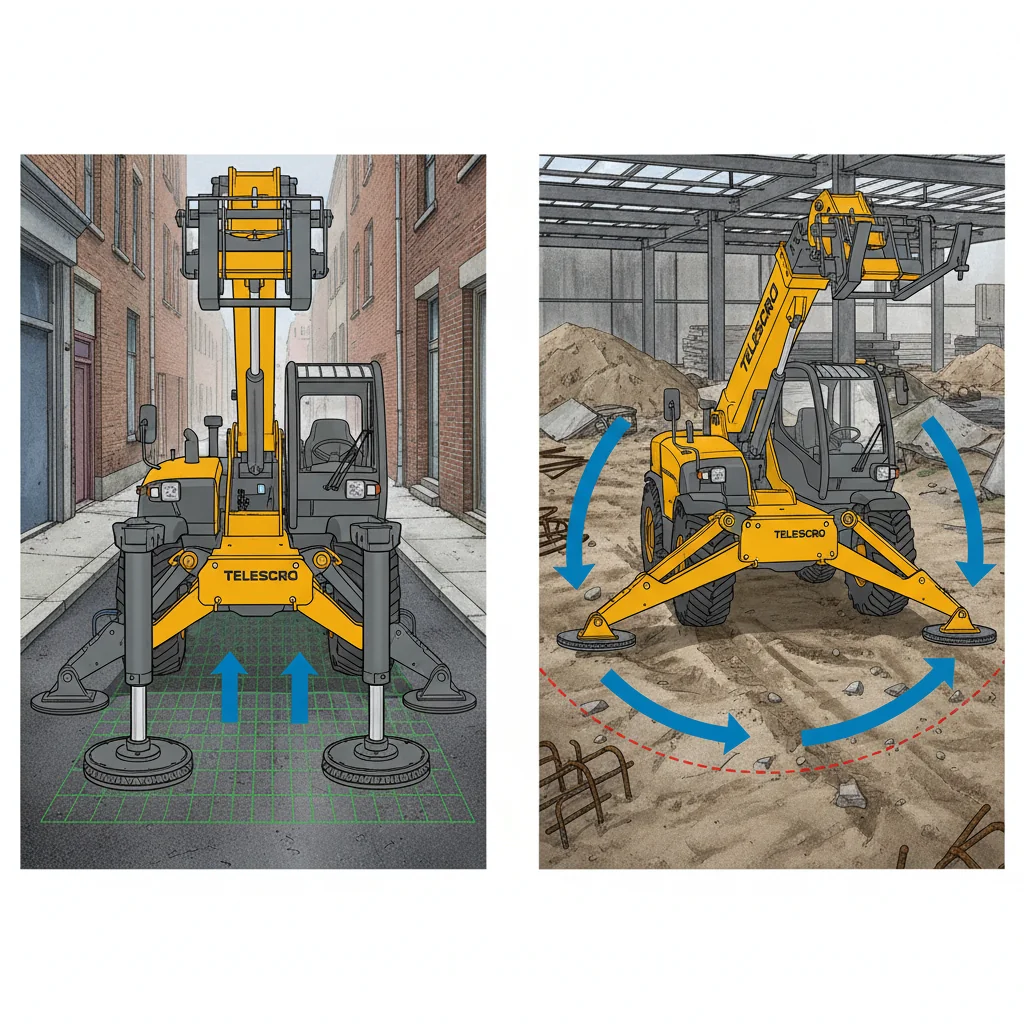

Which Telehandler Stabilizer Fits Your Site?

Vertical stabilizers⁵ suit tight spaces like city streets or indoor sites, while swing-out stabilizers⁶ deliver greater lateral stability for heavy lifts and side reaches on open terrains. Assess your site’s width, clearance, and lift needs before choosing, as stabilizer type directly impacts safety and capacity.

I’ve worked with customers who made the wrong stabilizer choice, and it cost them both time and safety. Last spring, a contractor in Singapore used a 3-ton compact telehandler with no stabilizers inside a warehouse. They believed a smaller unit would handle their pallet lifts up to 6 meters. But when they tried reaching over an existing conveyor line, the load chart limited them to just 800 kg at max extension—far less than they expected. If they’d had vertical stabilizers, their capacity would’ve increased by about 40%. That’s the real impact stabilizer selection can have.

It’s important to remember: site constraints dictate which stabilizer works. Vertical stabilizers drop straight down, so you only need enough space for the outriggers to extend beneath the frame. In tight city alleys or on indoor projects, I always suggest vertical types because working width can be under 2.5 meters. By contrast, swing-out stabilizers pivot outward, creating a much wider base—often 3.5 meters or more. That extra width delivers more lateral stability, especially on jobs like wind farms in Kazakhstan or open-air construction where side reach dominates.

Here’s a quick comparison to help map stabilizers to your project:

Stabilizer Type	Best Site Conditions	Working Width	Capacity Boost	Applications
Vertical	Tight/urban/indoor	2.3–2.7 m	30–50%	Warehouses, narrow streets
Swing-out (A-frame)	Open/uneven/side reach	3.2–4.0 m	40–60%	Rural, large construction
None	Only flat, light lifting	<2.4 m	Minimal	Basic logistics

Key takeaway: Always evaluate your jobsite’s size, terrain, and lifting requirements before selecting a telehandler stabilizer. Incorrect stabilizer choice can drastically reduce safe lifting capacity—often by 30–50%—and compromise stability. Matching stabilizer type to your actual working conditions is critical for both operational safety and efficiency.

Do Stabilizers Improve Telehandler ROI?

Telehandlers with stabilizers typically cost 5–15% more upfront and require additional maintenance. However, they increase lift capacity, reach, and site versatility, often replacing the need for extra rentals and reducing downtime and risks, which can result in significant long-term operational savings.

Here’s what matters most when weighing stabilizers and ROI: don’t judge by upfront price alone. I’ve worked with contractors in Kazakhstan and the UAE who hesitated at the extra 5–15% purchase cost. But after six months on high-rise jobs, they told me a stabilized 4-ton telehandler with 17-meter reach replaced at least two separate rentals—a crane for heavy panels and a platform for lifts over excavations. That saved them around $6,000 in just one project, not counting the two-week delay they avoided.

It’s not just about lifting heavier loads—though a stabilizer often adds 500–1,000 kg to your max capacity at full outreach. The real change is site versatility. I saw a project in Kenya where soft ground and tight access made standard telehandlers unstable above 70% extension. With the outriggers deployed, that same machine worked close to its rated load—2,800 kg—at full 15-meter boom. The hydraulic circuits and moment sensors added some complexity to maintenance, yes. But when I compare downtime for outside rentals (sometimes up to three days delay) against a few extra grease points and cylinder checks, the math favors a stabilized unit for heavy or high work.

For fleet managers running mostly ground-level tasks—like feed yards or basic logistics—I suggest reviewing how often you really need those extra lifts. Sometimes it’s smarter to keep one or two stabilized machines ready for special jobs, rather than upsize the whole fleet. Whatever your application, list specific jobs where outside equipment is needed and price out the alternative. That’s where the true ROI stands out.

Key takeaway: While stabilizers increase both initial cost and maintenance, they substantially expand a telehandler’s usability and can eliminate the need for added equipment rentals or delays. For firms handling frequent heavy lifts, the lifetime financial and operational benefits typically outweigh the premium for stabilized units.

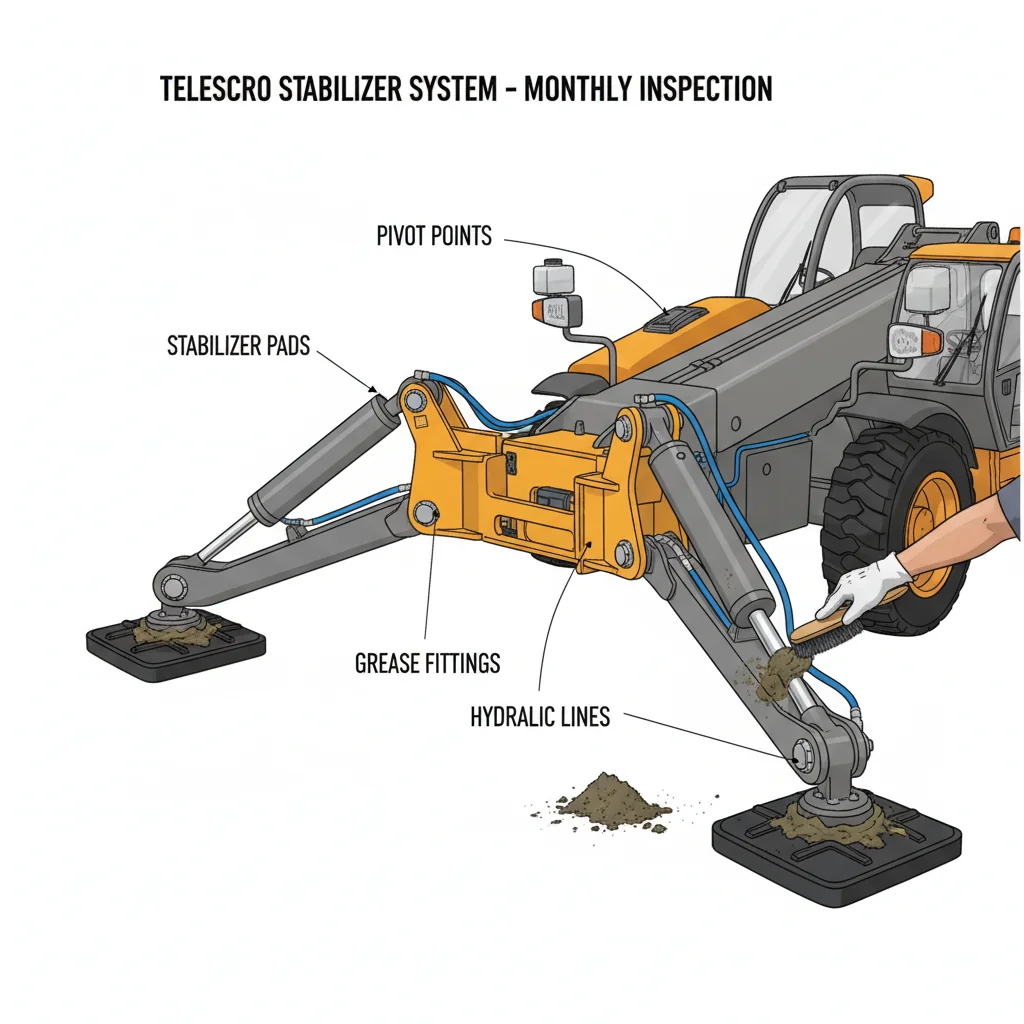

How Should Telehandler Stabilizers Be Maintained?

Telehandler stabilizers require monthly inspections for hydraulic leaks⁷, worn pads, and contaminated pivot points. Replace pads showing grooves or cracks, grease moving joints, and maintain correct hydraulic fluid levels. Clean dirt from legs and pads before retraction to prevent seal damage and support reliable, safe stabilizer operation.

If stabilizers aren’t kept in top shape, nothing else about your telehandler’s specs will matter—trust me, I’ve seen stalled jobsites in Kenya and Brazil because of simple neglect. Every stabilizer leg has hydraulic cylinders, locking pins, and thick ground pads that take a beating daily. I always tell customers to look for leaks or oil drips underneath after parking, especially if the machine just handled a heavy load. Even a slow hydraulic leak can cost you hours of downtime during a critical lift.

From my experience, stabilizer pads⁸ are the first point of failure—especially when working on rough ground or shifting between hard concrete and clay. In Kazakhstan, one contractor ignored shallow grooves in their pads. By month’s end, the pads had split and punched through soft earth, forcing them to rent a second unit while waiting for spare parts. Pads showing cracks or deep wear need replacing right away to keep solid ground contact and to avoid accidents.

It’s not just parts, either—good oil management is essential. Stabilizers share hydraulic fluid with the boom and steering. If the oil drops too low or gets dirty, you may find yourself unable to deploy all legs or, worse, stuck mid-lift. I suggest drivers make pre-shift inspections a habit: check levels, look for leaks, and wipe dirt off the legs and pads before retracting. Even small stones can damage seals if trapped.

For fleets, a simple stabilizer checklist—kept with the daily logbook—costs almost nothing but saves expensive repairs. Small habits deliver safe, reliable performance.

Key takeaway: Proactive maintenance of telehandler stabilizers—including regular inspections, pad replacement, proper oil management, and pre-shift checklists—prevents failures, boosts uptime, and reduces safety risks. Simple habits like cleaning and lubricating stabilizer parts directly affect the machine’s reliability and jobsite safety.

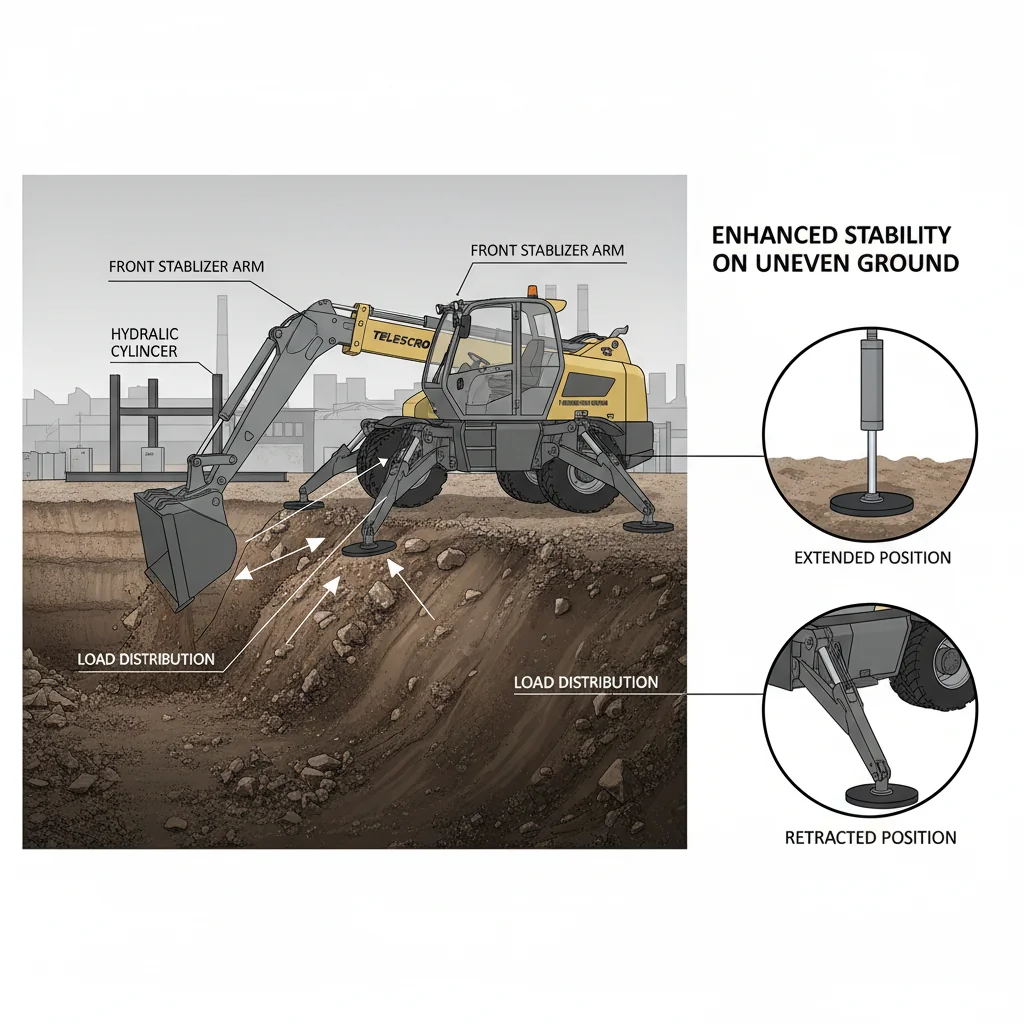

Do Stabilizers Boost Fleet Versatility?

Stabilizer-equipped telehandlers handle deep excavation, urban, industrial, and agricultural tasks with greater safety and flexibility, increasing utilization in mixed fleets. Their enhanced stability appeals to less-experienced operators and reduces reliance on external rentals or cranes for occasional critical lifts, maximizing operational adaptability.

Last month, a contractor in Kazakhstan called me about a tricky mill expansion. They needed to lift 2,800 kg electrical cabinets over a partially excavated trench, just 1.5 meters from the edge. They tried using a standard 3.5-ton telehandler, but the load moment indicator⁹ kept signaling overload, even at half boom extension. With limited space, bringing in a crane would cost them over $3,000 just for setup. Switching to a 4-ton telehandler with hydraulic stabilizers¹⁰ solved the job. The extra stability allowed their team to confidently stretch another 2 meters across the gap, finished the lift in a single afternoon, and avoided outside rentals.

From my experience, stabilizers make a big difference on sites where ground conditions or reach push the safety margins. I’ve seen this in Brazil on high-bay warehouse construction. There, a stabilized 18-meter unit handled palletized HVAC units to the fifth floor, while non-stabilized models sat parked because the load charts didn’t allow for safe lifting. Less-experienced operators especially appreciate the stability margin—stabilizers keep the machine planted and reduce accidental tip-overs, even on uneven ground.

But it’s not always about more hardware. For simple tasks—like moving pallets or stacking hay in tight barns—a compact, non-stabilized telehandler under 2.7 meters wide is often faster and easier to maneuver. Reviewing your fleet’s last year of jobs, ask yourself: How often did you rent a crane for a critical lift? Where did near-misses happen? That’s where stabilizers show their true value. I suggest mixing at least one stabilized high-capacity model into your fleet for those “problem solver” moments.

Key takeaway: Choosing the right mix of stabilized and non-stabilized telehandlers expands your fleet’s versatility and customer reach. Evaluate job histories and operational challenges to pinpoint where stabilizers provide the most value—especially for demanding lifts—without sacrificing maneuverability for less intensive, speed-focused applications.

Conclusion

We’ve looked at why telehandler stabilizers matter and how overlooking them can impact both safety and machine performance. From what I’ve seen on jobsites, the crews that stay safest treat stabilizer use as non-negotiable—never a shortcut, even if time’s tight. It’s tempting to rush, but skipping proper set-up is the fastest route to accidents and costly repairs.

If you’re unsure about stabilizer requirements for your telehandler, or want to discuss how real-world site conditions affect capacity, I’m happy to help. Feel free to reach out with questions—even if you just want a second opinion. Every project is different, and the right safety step makes a big difference.
