What Are the Telehandler Steering Modes? Field Engineer’s Guide to Mistake-Free Use

From my experience working with customers across 20 countries, the biggest steering mistake I see isn’t about turning radius¹ or top speed—it’s simply choosing the wrong steering mode for the job. More than one project has slowed to a crawl just because an operator didn’t switch modes at the right time.

In this article, I break down the three main telehandler steering modes: two-wheel, four-wheel, and crab steer².

I’ll explain how each one actually works on site, when to use them, and what to watch out for when selecting or operating different telehandler models. No sales talk—just field-tested advice. To be honest, understanding steering modes is about more than specs; it’s the difference between a smooth job and a frustrating day.

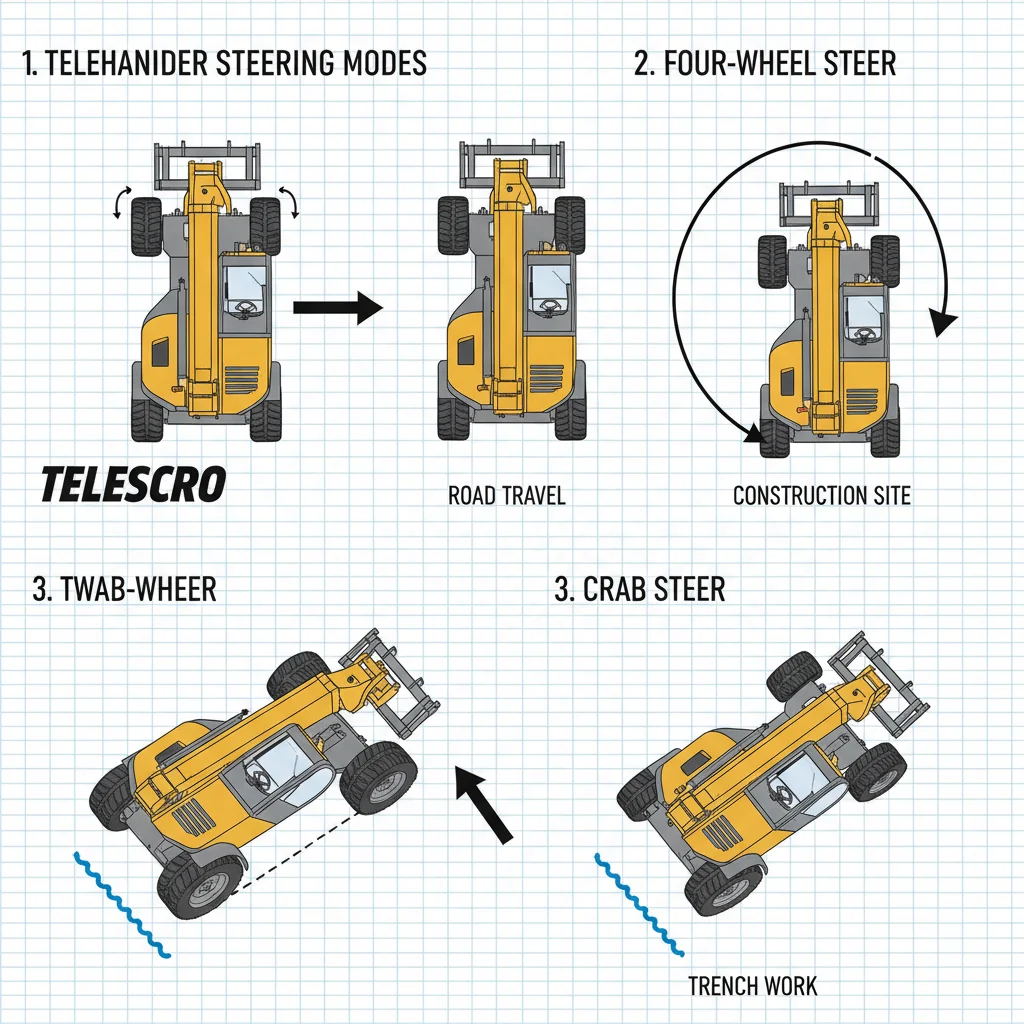

What Are Telehandler Steering Modes?

Most modern telehandlers feature three main steering modes: two-wheel steer for road or straight-line travel, four-wheel steer³ to greatly cut turning radius for confined sites, and crab steer for diagonal movement near walls or trenches. Modes may vary by model and equipment specification.

To be honest, most new buyers don’t realize how critical steering modes are until they’re stuck on a tight jobsite. I’ve seen this firsthand on a dairy farm project in New Zealand. The operator tried to maneuver a 4-ton telehandler with only two-wheel steer in a narrow equipment shed—he needed at least three extra meters just to make simple turns. With four-wheel steer, that turning radius drops by as much as 40%. Suddenly, the same telehandler gets around sharp corners and through barn doors under 3 meters wide.

Crab steering saves the day when you need to position loads next to a wall or trench. I had a contractor in Dubai working along tight concrete barriers—using crab steer, he slid the machine sideways while keeping the forks perfectly aligned. No room for error there. On most mid-size telehandlers (rated between 3,000–5,000 kg, with 14–18 meter reach), all three steering modes are selectable directly from inside the cab. Just keep in mind that more basic or older units sometimes offer only two-wheel and four-wheel.

Here’s what matters most: Always check which steering modes are available on the model you choose, and don’t assume every machine comes standard with full flexibility. Switching between modes usually takes just seconds using a dashboard selector. In my experience, matching steering mode to your worksite will save hours over a week—especially in tight yards or when precision matters. I suggest you test all steering settings before finalizing your purchase, especially if you’re working near obstacles or in restricted urban spaces.

Selecting the right steering mode—two-wheel, four-wheel, or crab steer—maximizes telehandler productivity and safety in different environments. Always confirm which modes are available and how to switch between them during machine selection, as not all models offer full steering flexibility.

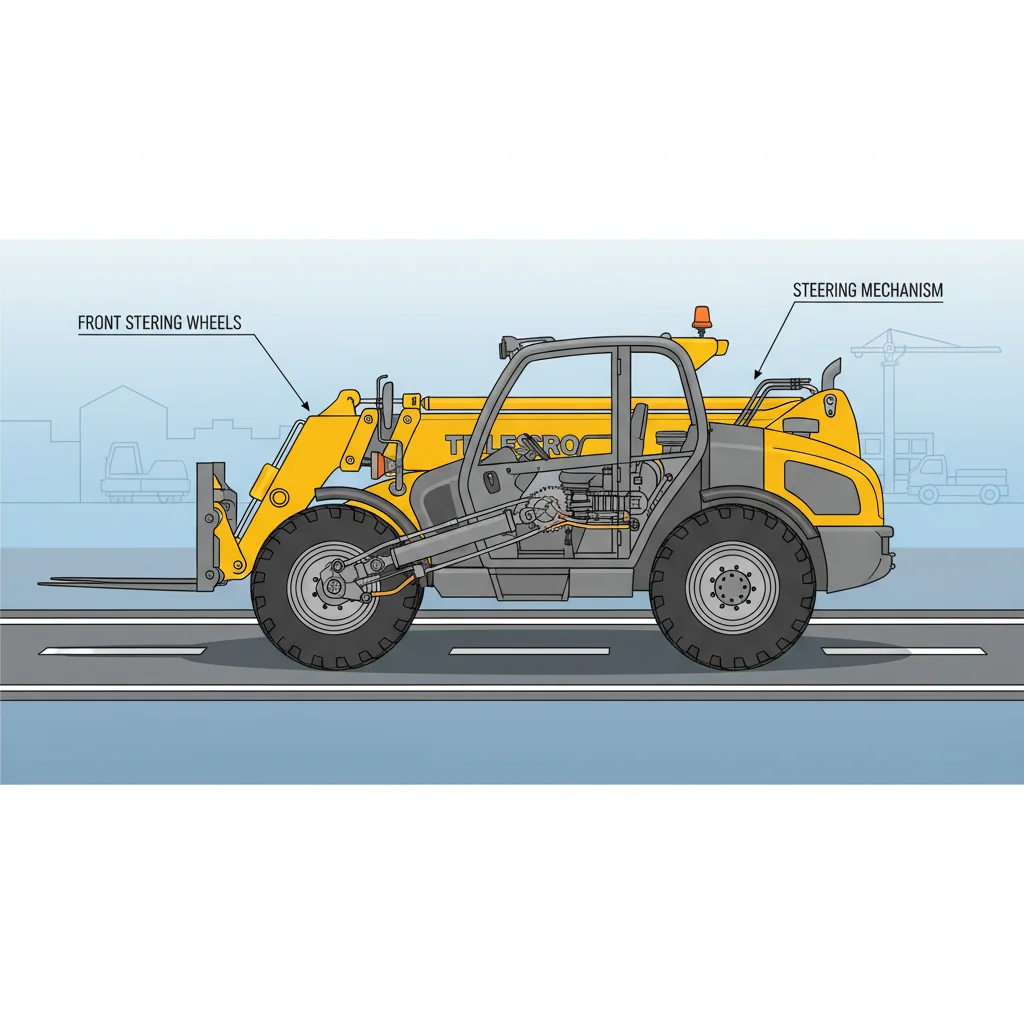

When Use Two-Wheel Steering Mode?

Two-wheel (front-wheel) steering should be used for road travel and longer site moves, as it offers maximum stability and familiar handling. This mode is safest and, in many cases, legally required whenever a telehandler operates on public roads or wide access routes.

Let me share something important about two‑wheel steering mode—especially if you plan to drive your telehandler on public roads or across large, open sites. Too often, I see operators forget to switch modes after tight maneuvers. Last year in Dubai, a customer called me after his team drove a 4-ton telehandler almost 2 kilometers in crab steer. The result? Unsteady handling, extra tire wear, and a scary swing on corners. It’s a mistake I’ve seen in at least five different countries.

Technically, two‑wheel (front‑wheel) steering is the safest choice for any kind of travel at speed. With the rear axle locked, the machine behaves predictably—just like a standard truck. This really matters at higher speeds or when the access route is busy. Side-swing of the rear end drops to a minimum, and that helps prevent clipping obstacles or endangering nearby workers.

Here’s when I recommend using two‑wheel steering:

• Road travel or street crossings – Essential for stability and legal compliance.
• Long onsite moves – Especially between buildings or across wide yards.
• New operators – The familiar feel cuts confusion and reduces mistakes.
• When carrying full loads – Extra stability keeps forklift tines level over bumps.
• Any time regulations require – Many countries, including the UK and Thailand, enforce this for road use.

If you manage a mixed fleet or have seasonal drivers, make two‑wheel steer part of your standard checklist before moving off-site. I always advise confirming the steering selector in the cab—some models still make it too easy to forget. That one habit can save you serious downtime and avoid expensive repairs.

Always switch telehandlers to two-wheel steering before traveling on roads or across open sites. It ensures greater stability, minimizes rear-end swing, and complies with most safety regulations. Make this mode the default for transport, and verify it before entering traffic or public areas.

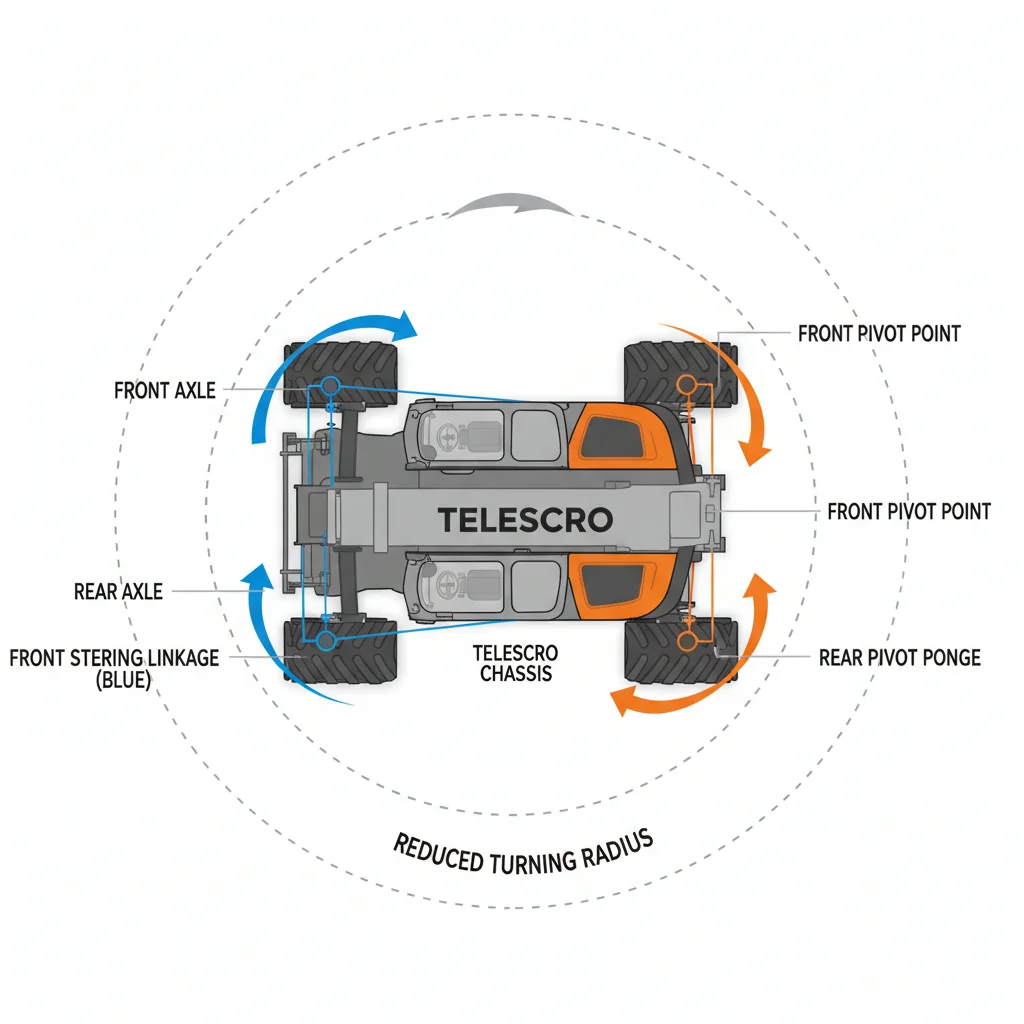

How Does Four-Wheel Steer Improve Maneuverability?

Four-wheel steering enables telehandlers to turn front and rear wheels in opposite directions, reducing turning circles by up to half. This allows large machines to navigate confined areas, such as tight lanes or busy yards, with greater speed and less need for repositioning.

The biggest mistake I see is buyers assuming that only compact telehandlers need four-wheel steer. In reality, maneuverability matters even more as machines get larger—especially on tight jobsites. Let me give you a real jobsite example: In 2023, a client in Doha was using a 4-ton, 17-meter telehandler to unload steel bundles in a crowded materials yard with alleys less than 5 meters wide. With two-wheel steering, turning required at least three shuffles each time just to avoid the boundary fence. When they switched to four-wheel steer, the operator could pivot and line up for every lift in one smooth move. That saved at least two days over the month—just from less repositioning.

Here’s what matters most when specifying this feature. Four-wheel steering turns the front and rear wheels in opposite directions, which tightens the turning radius by as much as 40% compared to conventional two-wheel steer. For example, a standard 4-ton unit might need more than 7 meters to turn in two-wheel mode. With four-wheel steer, that drops under 4.5 meters—making tough sites workable. Operators tell me it’s a lifesaver in narrow barns, scaffolding zones, or busy warehouses. They spend far less time backing up or jockeying back and forth. This isn’t just about speed—it cuts fuel use and reduces risk of bumping into something, especially when carrying bulky loads that block half your view.

I always suggest checking how simple it is to engage four-wheel steer from the cab. The best systems let you switch modes with one button, even while moving. For tight, urban projects, this is a spec you don’t want to ignore.

Four-wheel steering is essential for maneuverability in tight or cluttered sites. It shortens turning radius, saves time, reduces fuel consumption, and minimizes risk of collisions. For field engineers, specifying easy-to-use four-wheel steer systems boosts productivity and safety in demanding work environments.

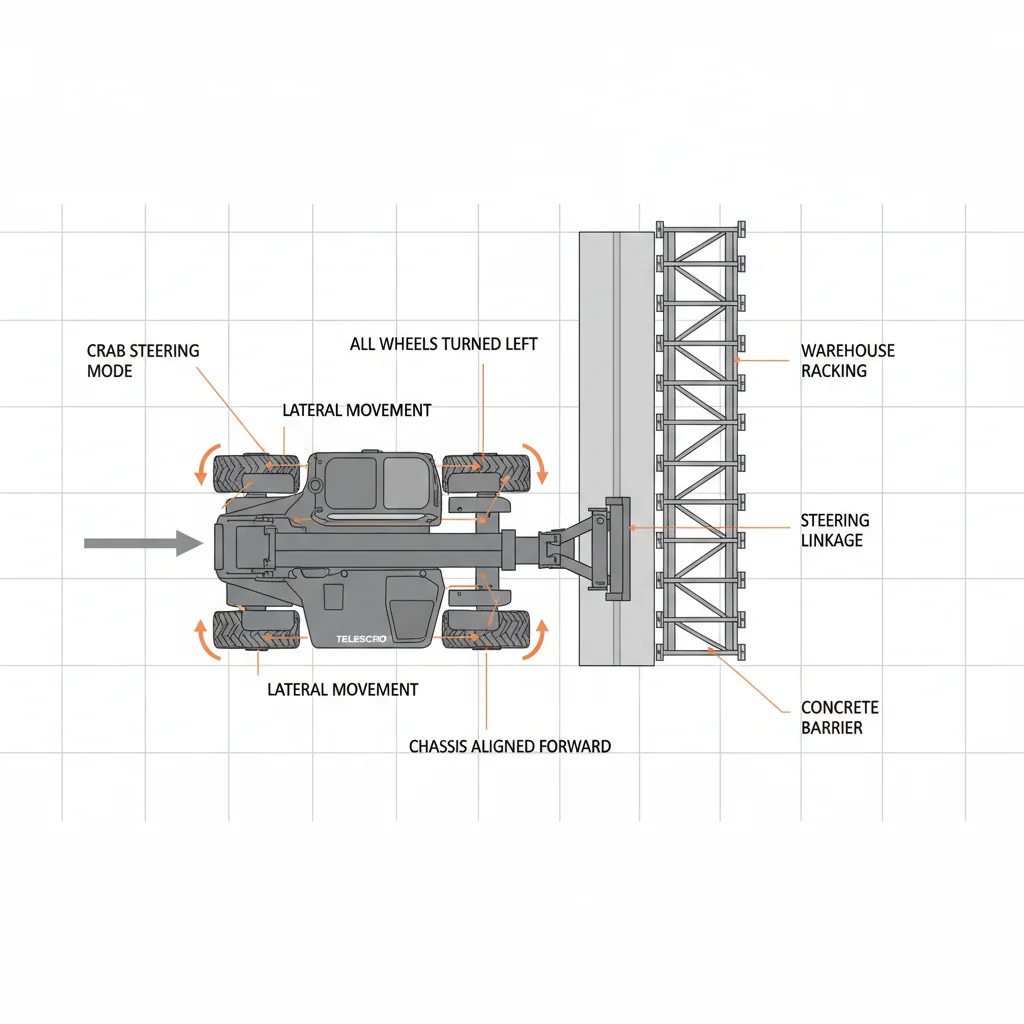

When Should You Use Crab Steering?

Crab steering lets all four wheels turn in the same direction, allowing precise lateral movement without changing the telehandler’s chassis orientation. It’s ideal for working parallel to walls, trenches, barriers, or racking, helping operators position loads accurately and safely near fixed structures.

Most people don’t realize that crab steering isn’t about turning tighter—it’s about moving sideways with control. I’ve worked with a crew in Dubai that needed to place glass panels right along a finished façade, just 15 centimeters from the edge. They relied on a 3.5-ton compact telehandler. Two-wheel or four-wheel steer would have risked swinging the rear into the glass. With crab steer, they “sidestepped” parallel to the wall and positioned their forks precisely—no extra corrections, and no damaged glass.

Crab steering shines in some specific situations. You’ll get the most benefit when you’re:

• Working alongside a building, fence, or barrier—where you need to creep closer without turning the whole chassis.
• Following the edge of a trench or pit—sidestepping keeps your load safe and away from hazards.
• Aligning closely with racking or storage bays—essential in warehouses with narrow access.
• Lining up deliveries in tight loading areas—I’ve seen this used daily at a precast yard in Poland, where space is always tight around the molds.

Technically, when all four wheels turn in the same direction, the whole machine tracks diagonally. You won’t get a smaller turning radius, but you’ll gain much more precision next to obstacles. On many job sites, that eliminates repeated back-and-forth shuffling, which saves time and reduces risk.

I suggest including crab steer training for crews working near structures. It’s not just about safety; it speeds up final placement, minimizes repairs from impact, and keeps productivity high in the real-world mess of a crowded jobsite.

Crab steer is essential for safe, accurate telehandler operation close to structures. Use it for final positioning along walls, trenches, or barriers to minimize the risk of collisions, improve placement speed, and reduce correction manoeuvres in tight spaces.

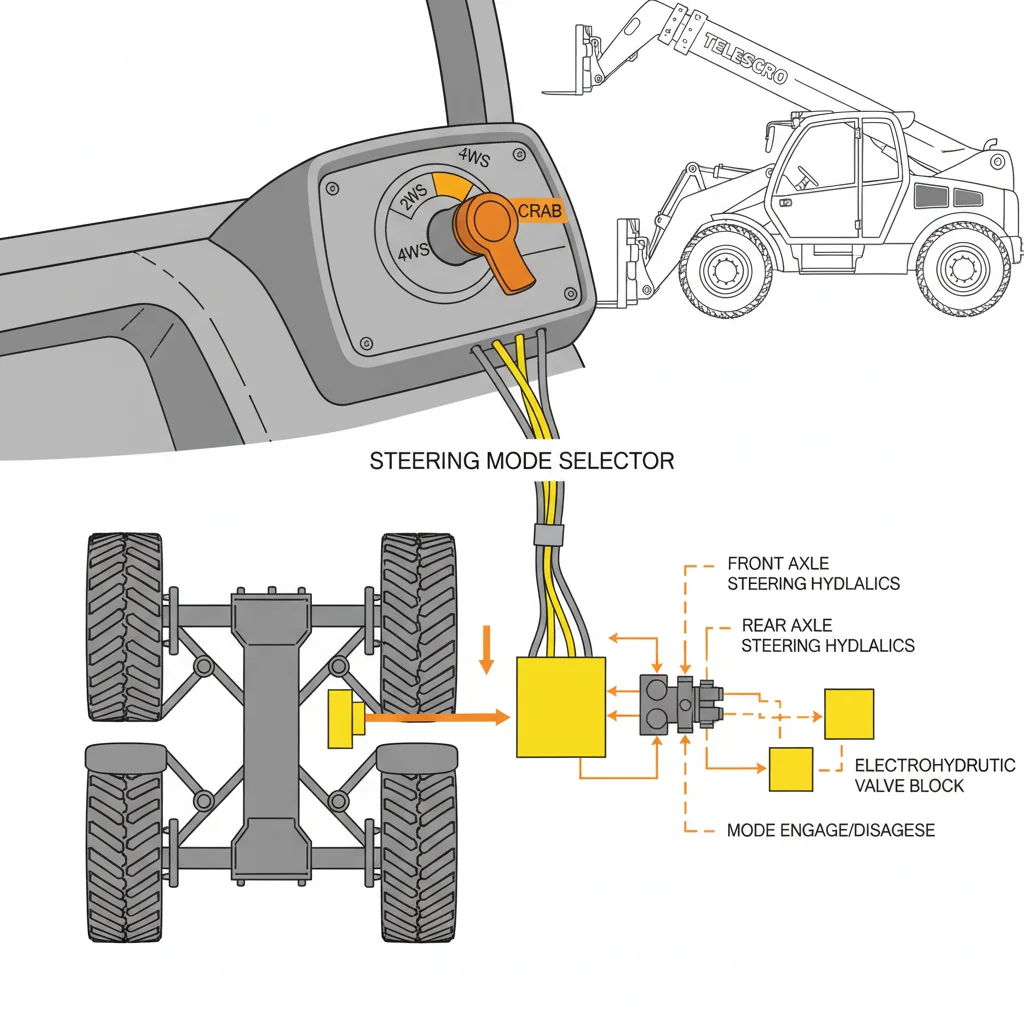

How Do Telehandler Steering Modes Switch?

Most modern telehandlers use an in-cab electric or electrohydraulic switch to select steering modes, requiring the machine to be stationary with wheels straight (“squared”). Advanced models may permit low-speed changes, but ignoring manufacturer procedure risks damaging steering components or causing faults.

Last month, a contractor in Dubai emailed me after their site telehandler flashed a steering fault code⁶. Their operator had switched from two-wheel to crab mode while creeping forward—something that’s easy to do with a casual flip of the in-cab selector. The machine? A 13-meter, 3.5-ton model with electrohydraulic steering⁷. They thought “low speed” meant okay. But after the mode change, the steering locked up and they lost a half day diagnosing. I’ve seen similar cases from Poland to Vietnam: not stopping and straightening wheels before changing modes triggers fault codes or even damages steering linkages. It’s often overlooked because the switches are so easy to use—soft-touch, some even with little icons lighting up on the dash.

Here’s what matters most when switching steering modes: always follow manufacturer guidelines. In most machines I’ve worked on (especially standard 3- to 4-ton units), you need to bring the telehandler to a full stop, “square” the wheels—meaning they point perfectly straight ahead—then activate the selector. This allows the hydraulic circuit to safely realign the cylinders and linkages. Some advanced models permit switching under 5 km/h, but those are exceptions. Older or budget machines? They may require a manual step, like cycling the steering before mode change.

If you’re comparing machines, don’t just check which modes they offer. Look for dashboard confirmation lights, clear icons, or audible alerts—they help prevent operator mistakes on a busy site. My advice: add a quick “steering mode check” to your workflow every time you switch tasks. It’s a small habit that can prevent expensive headaches.

Always stop and straighten the wheels before switching telehandler steering modes unless your machine explicitly allows low-speed mode changes. Following this procedure prevents damage to steering components and reduces the risk of operator error, regardless of the model’s selector style or sophistication.

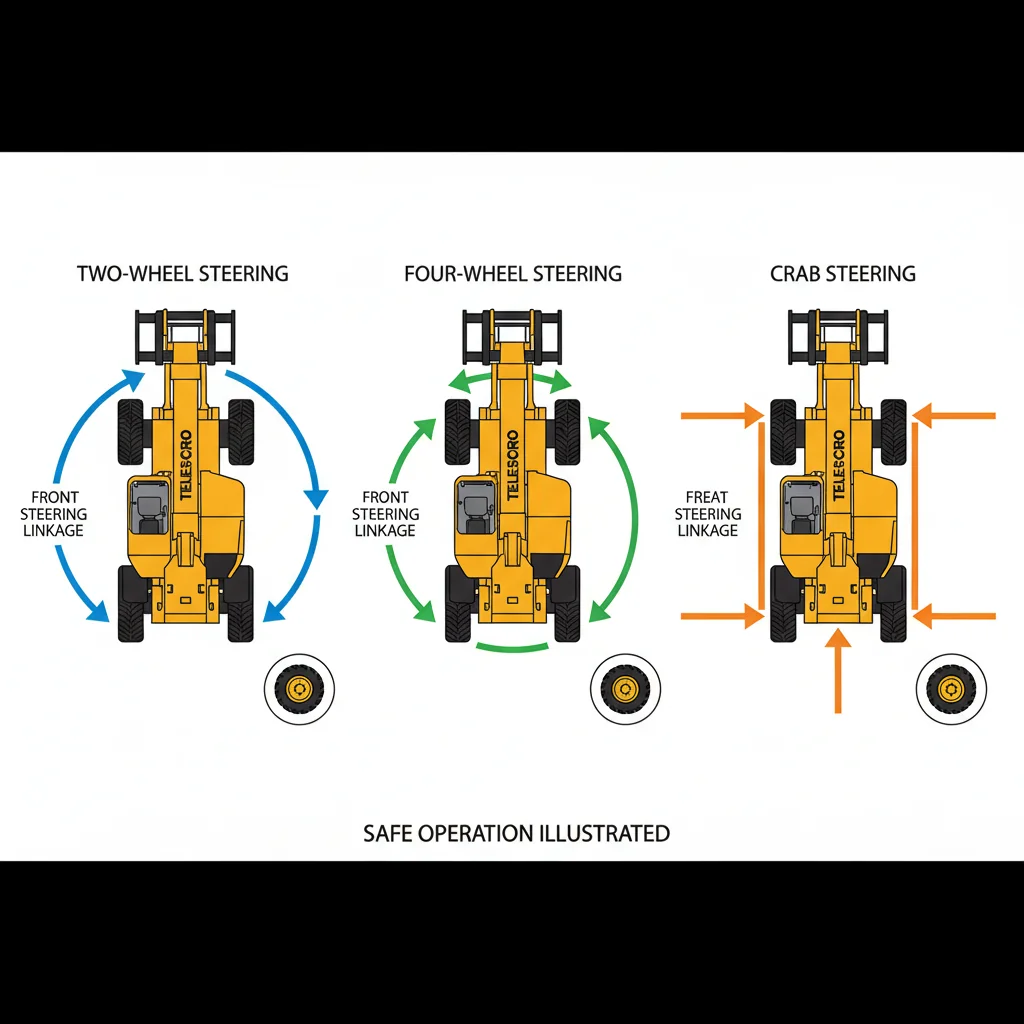

How Do Steering Modes Affect Safety?

Telehandler steering modes—two-wheel, four-wheel, and crab—directly impact safe operation. Misuse, such as selecting the wrong mode for the environment, can result in collisions, rollovers, or regulatory violations. Proper training and clear site rules significantly decrease these risks by promoting correct steering mode use.

Most people don’t realize that steering mode slips—forgetting to switch back or using the wrong setting—are a top cause of telehandler near-misses. In 2023, I visited a project in Kazakhstan where a newer operator kept the machine in four-wheel steer while exiting a tight yard onto a narrow access road. The rear wheels swung wider than he expected, scraping a parked truck and damaging a hydraulic line. That repair sidelined the telehandler for almost a full day and cost the contractor more than $800 in lost time and spare parts. I’ve seen variations of this mistake across Europe and Asia—crab steer in the wrong spot, unnecessary four-wheel in wide-open spaces.

Here’s what matters most when training operators: don’t just explain the steering modes—get hands-on and simulate real site layouts. I recommend setting up mock yard corners, gated entries, and obstacle rows. Make operators switch modes between tasks and test their awareness. For example, in many logistics yards, we see compact 3-ton units with under 4.5-meter turning radius struggle when drivers forget to use four-wheel steer. Multi-point turns quickly become unsafe, especially with a full 2,500-kg load on the forks. A simple habit—double-checking you’re in two-wheel before rolling out of the site or in crab for precise parallel movement—really cuts down on accidents.

If you manage a fleet, clear site rules help. I suggest posting reminders near gates and including steering checks in your morning briefings. Over time, the small investment in team training will save thousands by avoiding machine downtime and impact claims.

Telehandler safety hinges on matching the steering mode to site conditions. Training programs should emphasize practical drills and mode-switching awareness, while fleet managers must set clear rules and reminders. Consistent focus on correct steering mode use is crucial for reducing workplace accidents and machine damage.

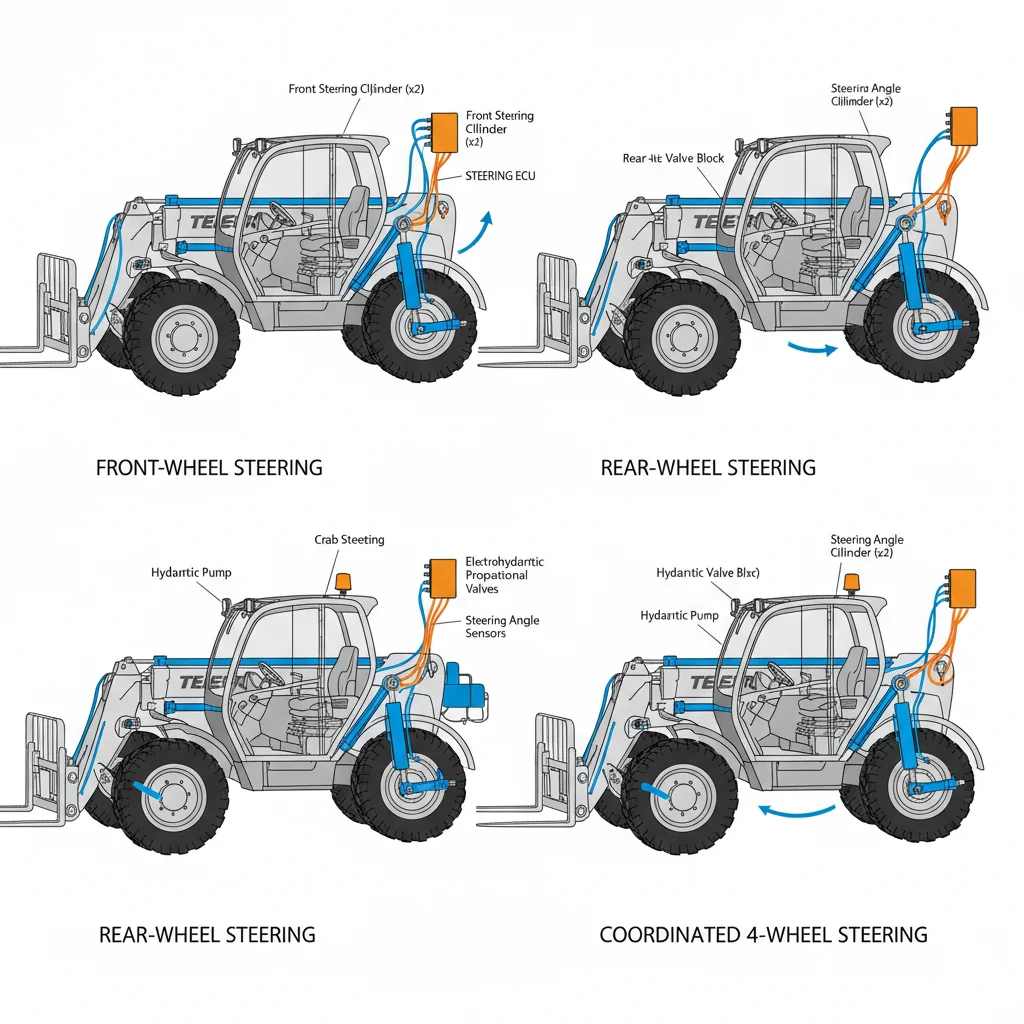

Why Are Telehandler Steering Systems Complex?

Telehandler steering involves hydraulic or electrohydraulic components—like extra cylinders, valves, ECUs, and sensors—to support multiple modes and synchronized movement. These systems boost maneuverability and control, but require more upfront investment and ongoing maintenance due to increased potential failure points.

Here’s what matters most when looking at telehandler steering complexity—it’s all about what you gain, and what you have to manage. A basic 2-wheel steer system is straightforward, but it seriously limits maneuverability on tight jobsites. Most telehandlers above 2.5 tons now use hydraulic or electrohydraulic steering, because multi-mode operation is almost always required. To get crab or 4-wheel steer⁸, you need extra hydraulic cylinders, electronic sensors to track wheel positions, diverter valves, and usually an ECU to coordinate everything. I’ve seen a 4-ton, 13-meter-reach unit in Kazakhstan where the steering priority valve developed a slow leak. For two weeks, their team dealt with unpredictable wheel alignment and lost productivity every day until we sourced the replacement part—around $800, plus shipping.

This complexity does pay off on many sites. With 4-wheel or crab steering, you can maneuver through alleyways less than 3 meters wide and place loads at angles no fixed-steer loader could match. I had a customer in Brazil who needed to move heavy pipe—over 3,000 kg—sideways into a cramped storage rack. Crab steer saved them hours every week. But, as you add cylinders, hoses, and electronics, you add potential failure points. Worn pivot pins or a faulty position sensor can knock a machine out of diagonal steering mode, leaving only basic functionality.

My suggestion: ask how easy it is to access and replace steering components. Also, check if the control system has failsafes so you’re not stuck if one sensor goes down. Planning for the reality of support and downtime will help keep your telehandler earning money instead of sitting in the yard.

Telehandler steering complexity enables valuable features such as tight turns and diagonal travel, but increases maintenance demands and costs. Evaluating how the steering architecture balances advanced capability with reliability, and understanding its support requirements, is essential for maximizing uptime and safeguarding your investment.

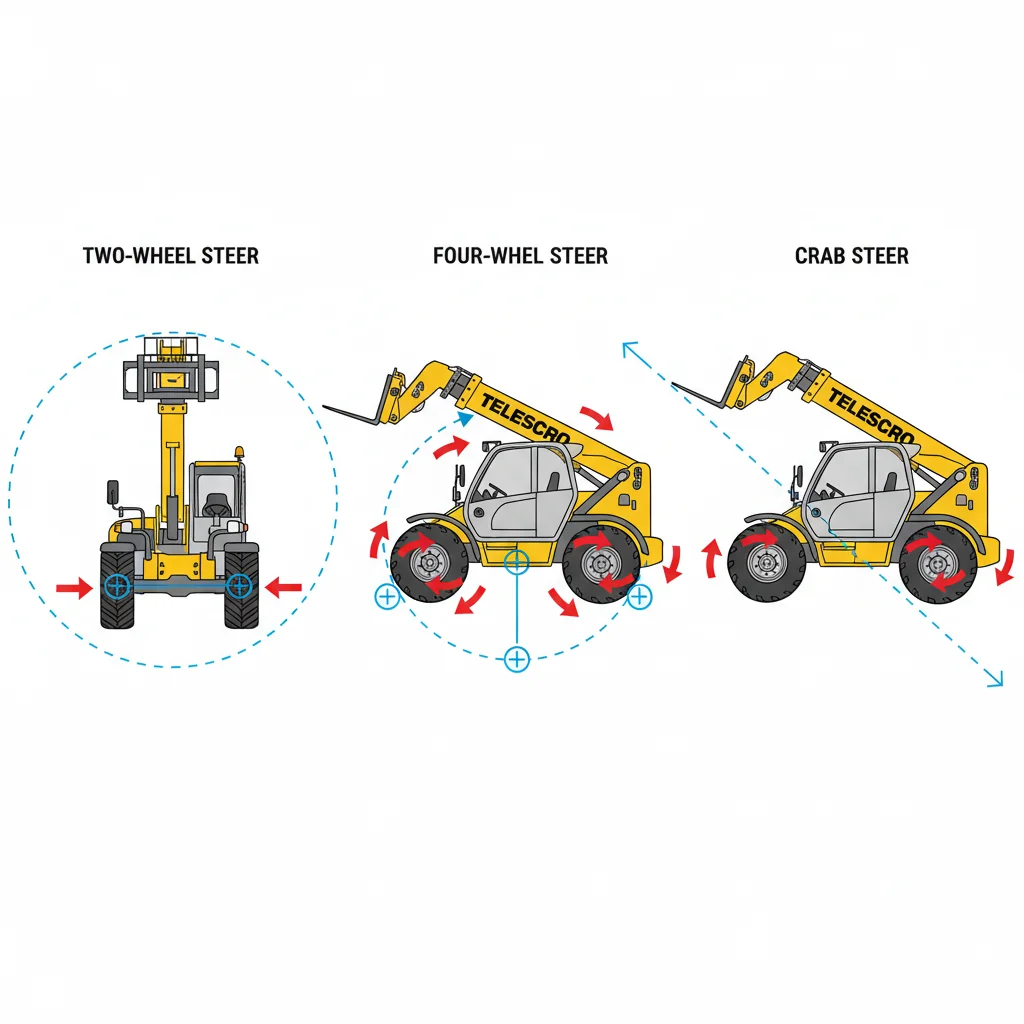

How Do Telehandler Steering Modes Compare?

Telehandler steering modes—two-wheel, four-wheel, and crab steer—directly impact productivity in challenging spaces. Buyers should map typical work environments and prioritize models offering modes that meet their needs. Multi-mode systems often justify higher costs by enabling faster maneuvering and reducing cycle times by up to 30%.

From what I’ve seen on different jobsites, steering mode choices actually impact daily productivity more than some buyers expect. Take last year—a customer in Kazakhstan handled prefab wall panels inside a half-built warehouse. Space was so tight, forklift trucks couldn’t even turn. Their four-wheel steer telehandler⁹, with a turning radius around 4.2 meters, saved them at least two hours per shift versus their old two-wheel model. That kind of difference adds up over a month. Here’s how the main steering modes compare based on real jobs I’ve supported:

Steering Mode	Best For	Maneuverability	Switching Ease	Typical Application	Key Limitation
Two-wheel steer	Long, straight travel	Lowest	Simple	Hauling loads on open sites	Wide turning circle
Four-wheel steer	General site maneuvering	High	Easy	Construction with mixed open/tight areas	Slightly higher learning
Crab steer	Parallel movement in tight	Highest	Moderate	Working close to walls, fencing, or obstacles	Precision can be tricky

I always suggest buyers walk their jobsite first. In packed sites with obstacles—steel columns, scaffolding, even parked vehicles—it’s four-wheel and crab steer that cut cycle times by up to 30%. For example, an Australian customer lifting brick packs inside a newly built hospital saw labor costs drop almost immediately after upgrading to a unit with all three steering modes. Not every model offers that level of flexibility.

Key takeaway: Choosing telehandlers with the right steering modes can dramatically boost efficiency, especially in tight or obstacle-filled worksites. By matching steering capabilities to real-world tasks and site layouts, buyers often offset higher equipment costs with reduced labor, lower risk of equipment damage, and faster job completion.

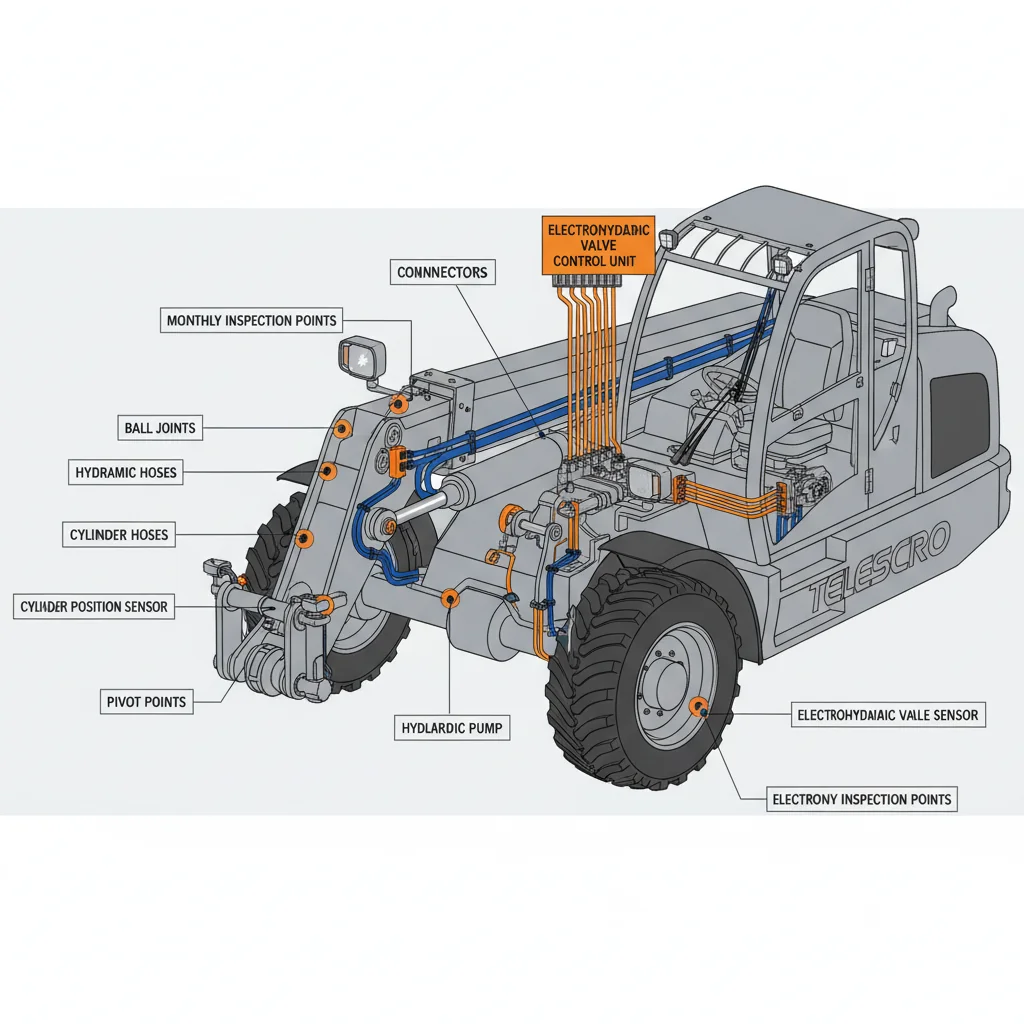

How Often Should Telehandler Steering Be?

Telehandler steering systems require monthly inspections of ball joints¹⁰, pins, hoses, and cylinder seals—more frequently in harsh environments. Grease all pivot points every 100 hours, and check electronic sensors and connectors daily to avoid failures in electrohydraulic steering modes. Proactive checks help prevent costly downtime.

Let me share something important about steering maintenance that many crews overlook, especially with multi-mode telehandlers. In harsh sites—think sand plants in the UAE or quarries in South Africa—dust and grit eat away at ball joints and steering pins much faster than on clean concrete. I always tell customers that even though the manual says to inspect every month, you’ll often need to check every two weeks if you’re working in places with heavy rain, abrasive materials, or temperature swings from 5°C in the morning to over 30°C by noon.

A customer in Kazakhstan once called me about erratic steering on his 4-ton, 17-meter telehandler. The issue? A neglected cylinder seal let hydraulic oil leak, which triggered a steering mode fault. That cost them three days of downtime waiting for parts. Since then, his team checks hoses, joints, and cylinders every Friday—just a 15-minute routine that catches small leaks before they become big problems.

Don’t forget lubrication. I recommend greasing all pivot points every 100 operating hours, not just the main linkages. If you push the machine hard—tight turns with a full 1,200 kg pallet at extension—the load on those joints triples. Skipping grease can lead to uneven tire wear or, worse, steering play that’s tough to fix on-site.

For machines with electrohydraulic steering, add daily sensor checks into your walk-around. Make sure each mode engages cleanly in a safe area. It takes five minutes, but it can save days of lost productivity. I suggest making steering checks as routine as checking the oil level. It’s worth it for safe, reliable operation.

Consistent, scheduled maintenance—including lubrication, inspections, and daily checks of both mechanical and electronic steering components—is essential for safe telehandler operation. Early detection of wear, leaks, or sensor faults reduces downtime and extends equipment life, saving costs and ensuring confident, mistake-free use on site.

Conclusion

We’ve looked at each telehandler steering mode and where they fit best on the jobsite. From what I’ve seen, even experienced crews can run into trouble if they assume all models have full steering flexibility, or if they don’t practice switching modes before real-world use. Double-checking which steering options come standard—and testing them on uneven ground—makes a big difference for both safety and productivity.

Have questions about steering setups, model differences, or real jobsite challenges? I’m always happy to help—just reach out and we can talk through what actually fits your workflow. The right telehandler choice depends on your specific site needs and crew habits.
