T4512 Compact Telehandler
Maximum Reach. Minimum Space. Total Control.
T4512 combines 4.5 m lift height, 1.25 t payload and ultra-compact dimensions — delivering stability and efficiency where standard telehandlers simply can't work.
- 4.5 m Vertical Lift with VLS Stability
Nearly vertical lifting movement improves machine balance and safety — even for less experienced operators.
- Ultra-Compact: 1.56 m Width, <2 m Height
Designed for low entrances, narrow passages and indoor operation without sacrificing performance.
- Smooth Power Transmission for Efficient Work Cycles
Consistent torque delivery ensures stable, efficient loading and material handling.
What's On This Page
Jump to the section that matters most to your equipment sourcing decision.

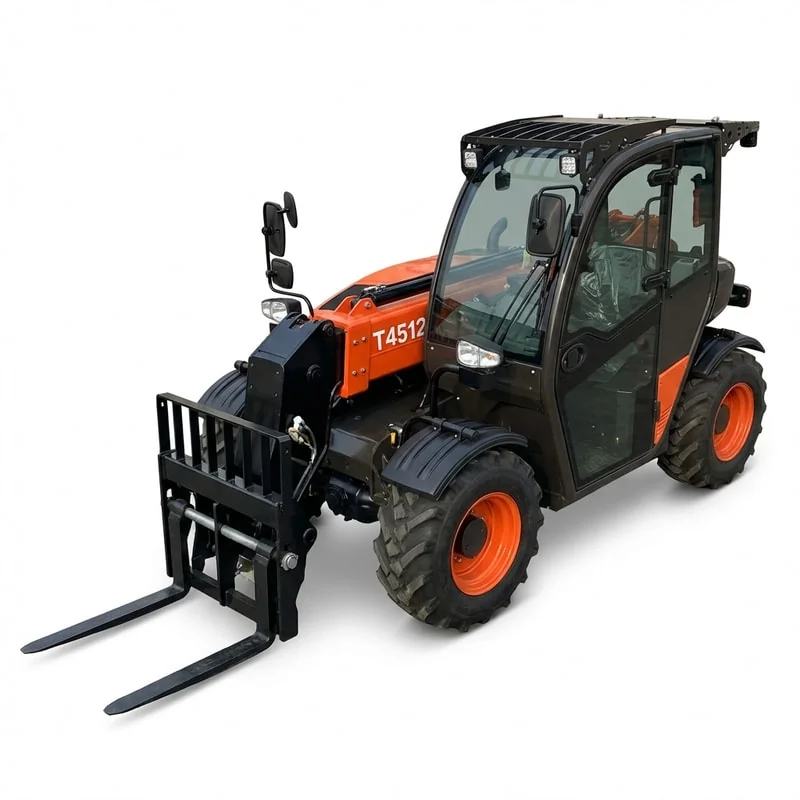

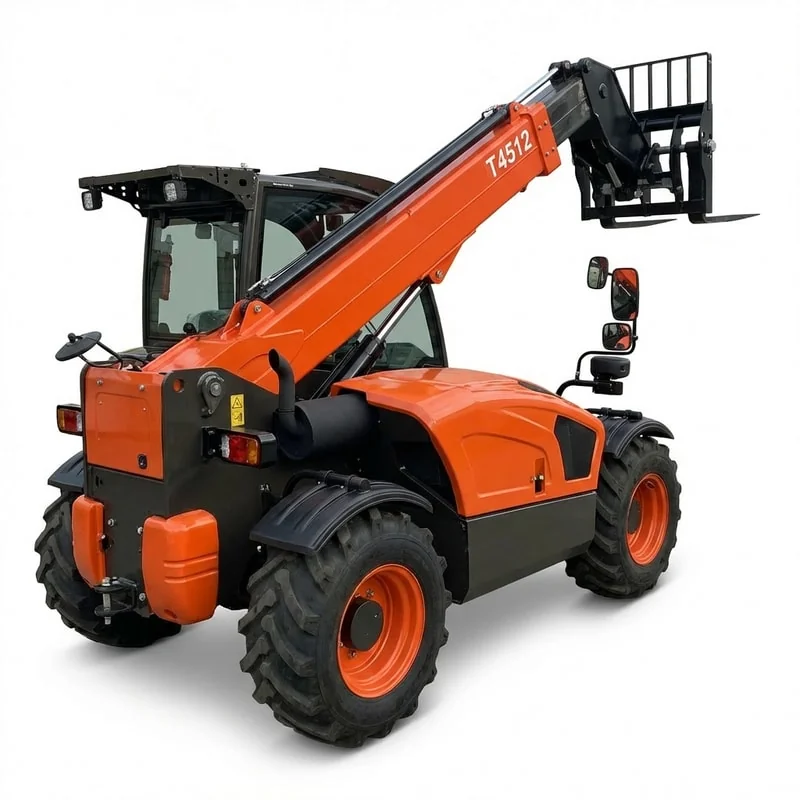

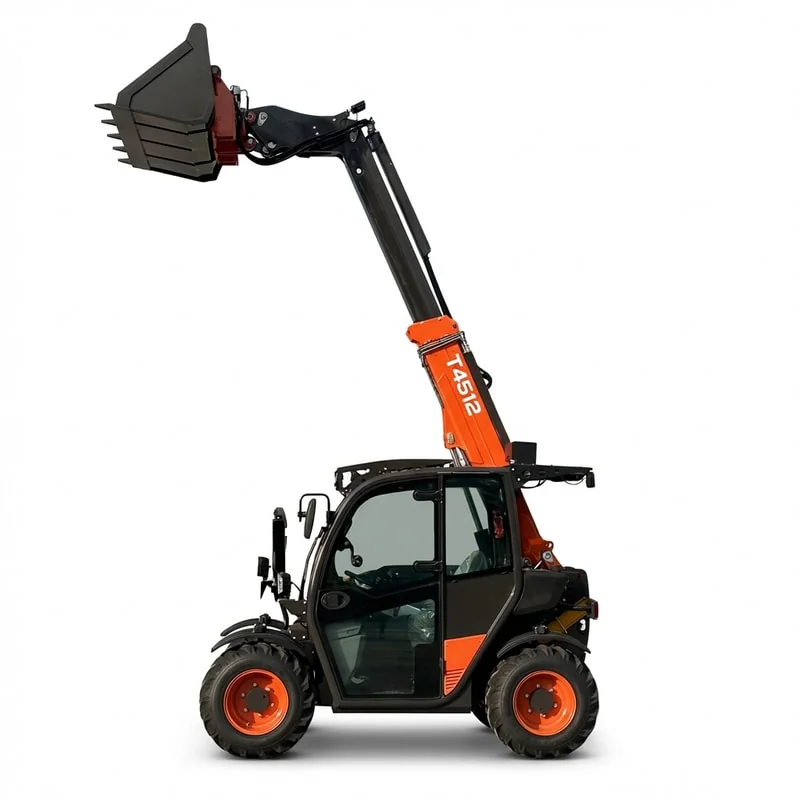

T4512 Gallery
Ultra-compact telehandler with 4.5m lift height and 1,250 kg capacity
← Swipe to view more →
Key Specifications
Complete technical specifications for T4512 Compact Telehandler — designed for stable material handling in confined spaces and mixed working conditions.
T4512 Compact Telehandler
Reliable performance in a compact footprint
Main Performance
| Maximum Lifting Capacity | 1,250 kg |
| Maximum Lift Height | 4,537 mm |
| Driving Speed | 0–20 km/h (30 km/h optional) |
| Operating Weight | 2,750 – 2,900 kg |
| Steering Modes | All-wheel / Front / Crab |
Balanced lifting capacity and height for daily loading, stacking and material transport.
Dimensions
| Overall Length (with bucket) | 3,944 mm |
| Overall Width | 1,564 mm |
| Overall Height (with cab) | 1,995 mm |
| Inner Turning Radius | 951 mm |
| Standard Tires | 10.0/75-15.3 AS |
Compact dimensions allow easy operation in narrow farm yards, warehouses and low-access areas.
Engine & Drive System
| Engine Brand | Yanmar |
| Engine Type | 3-cylinder diesel |
| Rated Power | 18.4 kW / 25 hp |
| Rated Speed | 2,600 rpm |
| Emission Standard | Stage V |
| Drive System | Hydrostatic |
| Parking Brake | Electric (Auto-hold & Hill-hold) |
Simple, proven diesel engine with hydrostatic transmission for smooth and precise control.
Hydraulic System & Capacities
| Work Hydraulics Pressure | 220 bar |
| Drive Hydraulics Pressure | 380 bar |
| Hydraulic Flow Rate | 28.6 L/min (up to 70 L/min optional) |
| Hydraulic Oil Tank | 36 L |
| Fuel Tank Capacity | 33 L |
| 3rd Control Circuit | Standard (with pressure release) |
Stable hydraulic performance suitable for buckets, forks, bale clamps and multiple attachments.
* Specifications based on standard configuration. Custom engine and hydraulic options available on request.
Why Choose T4512 Compact Telehandler
Designed for operator comfort, easy maintenance and efficient daily operation in confined spaces.

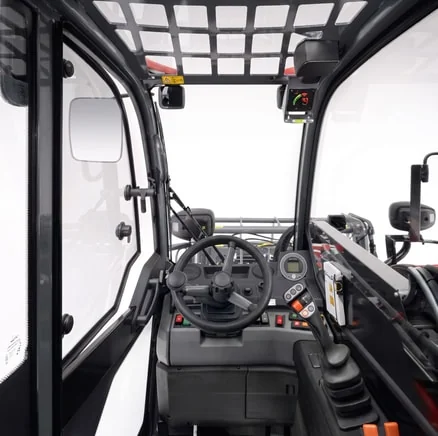

Comfortable Cab with Excellent Visibility
The ergonomic cab design and large windows provide clear all-around visibility, helping operators work comfortably and safely throughout long working hours.

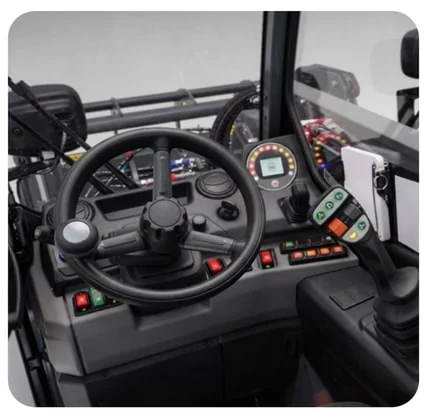

Simple and Intuitive Controls
The multifunction joystick and clearly arranged controls allow smooth, precise operation with minimal training, even for new operators.

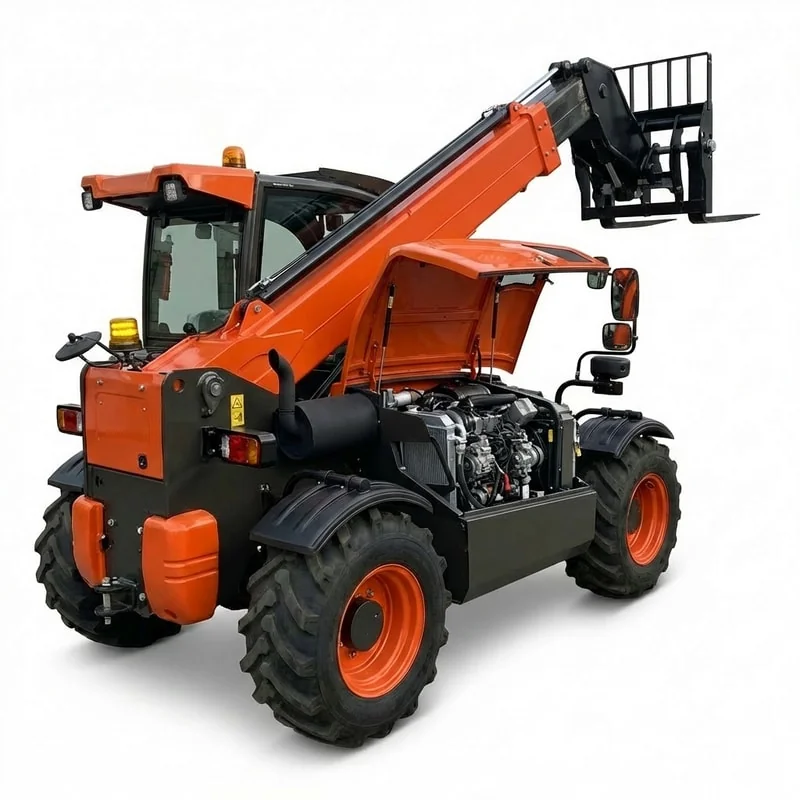

Proven Diesel Engine Options
The T4512 is equipped with reliable Yanmar diesel engines, offering stable performance and low fuel consumption for different daily workloads.

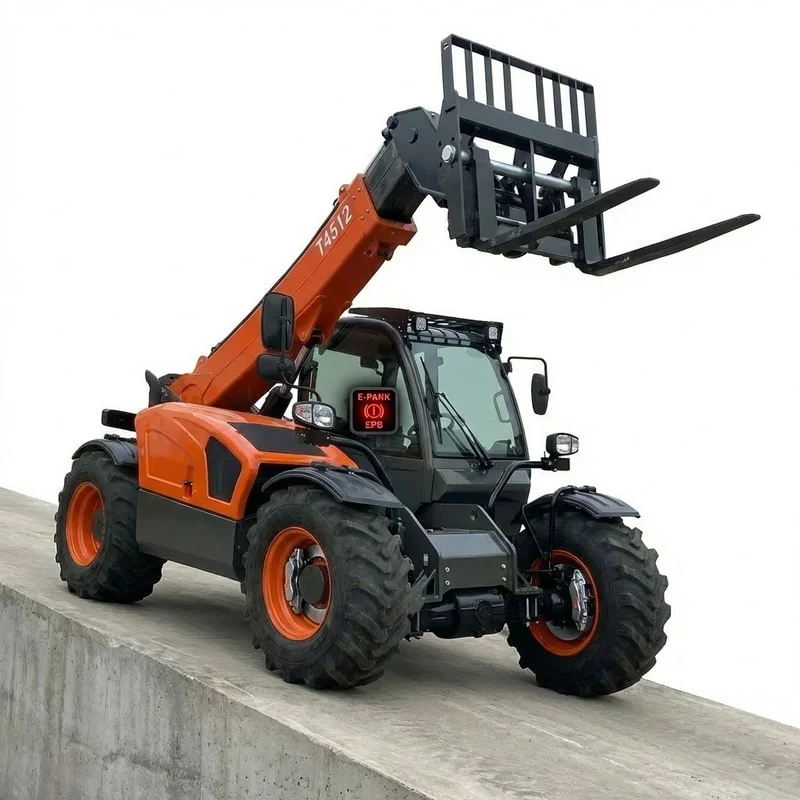

Electric Parking Brake for Safer Operation
The electric parking brake automatically secures the machine when stopped or when the operator leaves the seat, improving safety on slopes and uneven ground.

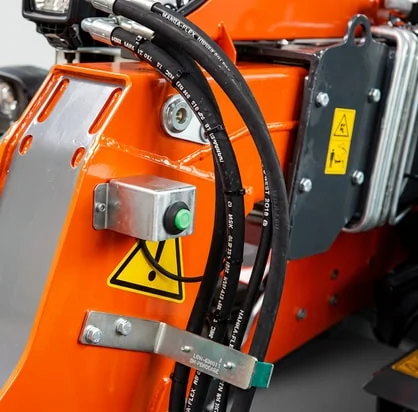

Faster Attachment Changes
The pressure release function on the 3rd control circuit allows quick and easy attachment changes, reducing downtime during daily work.

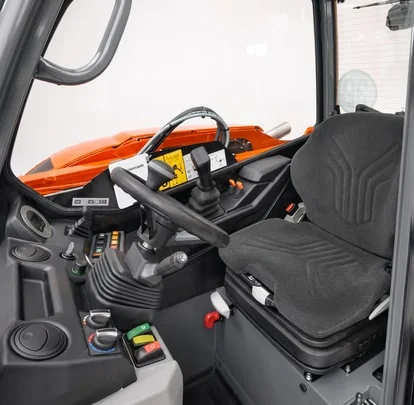

Improved Working Comfort in All Conditions
An efficient heating and ventilation system creates a pleasant working environment, helping operators stay focused and productive in different climates.
Comfortable Cab with Excellent Visibility
The ergonomic cab design and large windows provide clear all-around visibility, helping operators work comfortably and safely throughout long working hours.
Simple and Intuitive Controls
The multifunction joystick and clearly arranged controls allow smooth, precise operation with minimal training, even for new operators.
Proven Diesel Engine Options
The T4512 is equipped with reliable Yanmar diesel engines, offering stable performance and low fuel consumption for different daily workloads.
Electric Parking Brake for Safer Operation
The electric parking brake automatically secures the machine when stopped or when the operator leaves the seat, improving safety on slopes and uneven ground.
Faster Attachment Changes
The pressure release function on the 3rd control circuit allows quick and easy attachment changes, reducing downtime during daily work.
Improved Working Comfort in All Conditions
An efficient heating and ventilation system creates a pleasant working environment, helping operators stay focused and productive in different climates.
Want to know the latest price?
Get factory direct pricing within 2 hours.
3 Types of Steering
The T4512 is equipped with three steering modes, allowing the operator to choose the most suitable driving style for each job site. This makes daily operation easier, safer and more efficient.

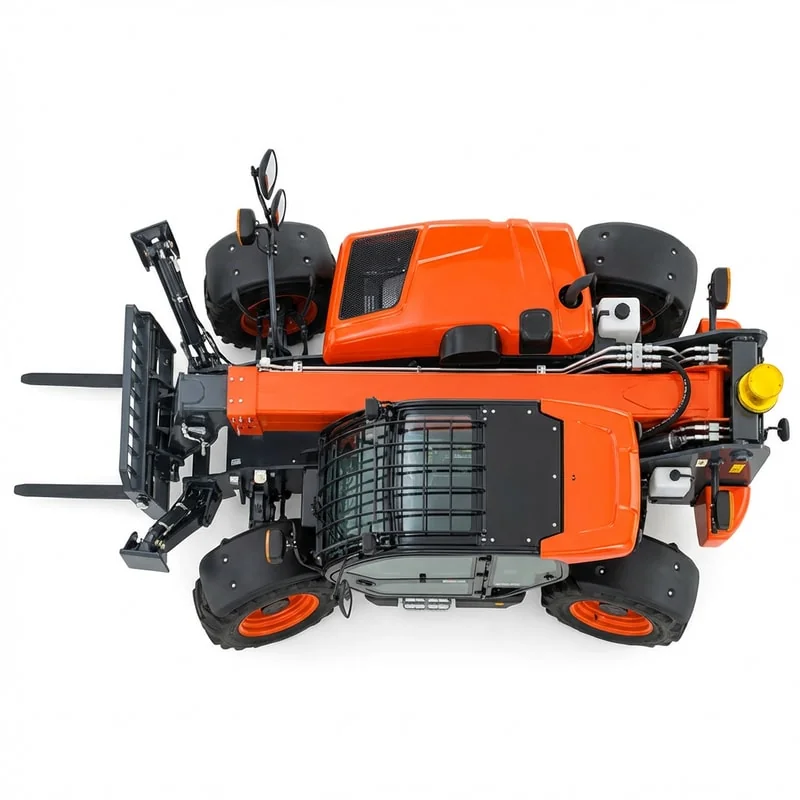

All-Wheel Steering
Maximum maneuverability in tight spaces
All-wheel steering enables the machine to turn in very small areas, making it ideal for farm yards, warehouses and narrow construction sites.
Best for:

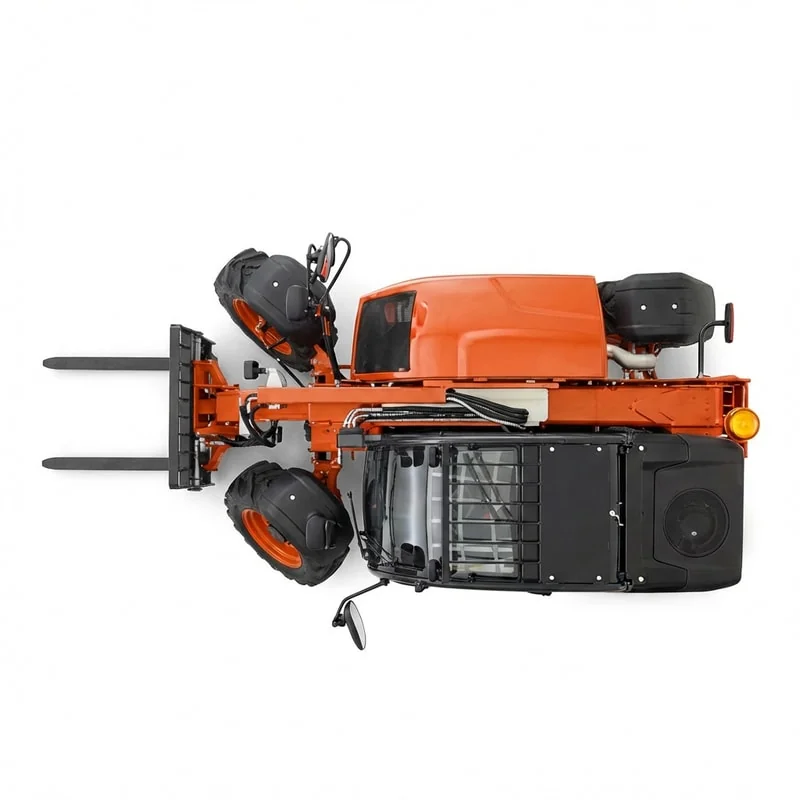

Front Axle Steering
Stable and safe driving at higher speeds
Front axle steering provides stable and predictable handling, especially when traveling longer distances or moving between job sites.
Best for:

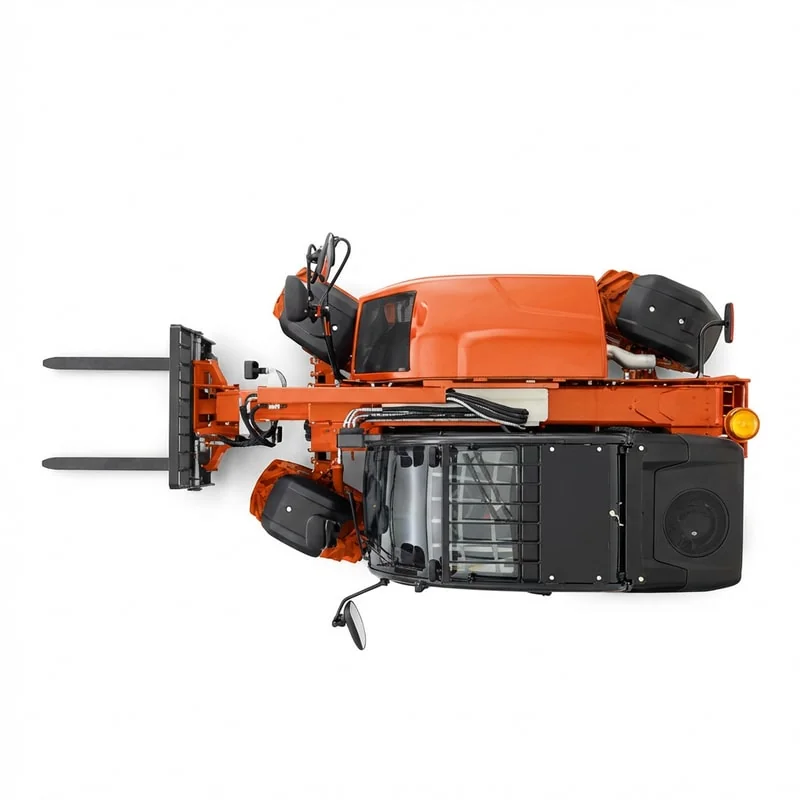

Crab Steering
Precise sideways movement along walls or stacks
Crab steering allows the machine to move diagonally, which is especially useful when working close to walls, fences or material stacks.
Best for:
All-Wheel Steering
Maximum maneuverability in tight spaces
All-wheel steering enables the machine to turn in very small areas, making it ideal for farm yards, warehouses and narrow construction sites. It helps operators position the machine quickly and accurately when space is limited.
Best for:
Front Axle Steering
Stable and safe driving at higher speeds
Front axle steering provides stable and predictable handling, especially when traveling longer distances or moving between job sites. This mode is well suited for transport tasks and general driving.
Best for:
Crab Steering
Precise sideways movement along walls or stacks
Crab steering allows the machine to move diagonally, which is especially useful when working close to walls, fences or material stacks. It helps operators maintain precise alignment without repeated forward and reverse movements.
Best for:
Why Choose Us
Direct Factory Supply
We are a direct manufacturer, not a trading company. You communicate directly with the factory, with clear specifications, pricing, and production responsibility.
Get Factory Quote
Focused on Practical Export Models
Our machines are designed for real working conditions in developing markets, prioritizing reliability, easy maintenance, and cost efficiency over unnecessary complexity.
Get Factory Quote
Proven Export Experience
We regularly supply telehandlers to overseas markets and understand export packing, documentation, and delivery requirements.
Get Factory Quote
Standardized Production & Quality Control
Each machine follows standardized production processes with inspection before shipment to ensure consistent quality.
Get Factory Quote
Simple Configuration, Easy Local Service
We avoid over-complicated electronic systems. This makes local servicing easier and reduces downtime during long-term operation.
Get Factory Quote
Flexible Customization for Local Needs
Engine options, tires, colors, and configurations can be adjusted to match local regulations, fuel quality, and working habits.
Get Factory QuoteWhere T4512 Performs Best
Designed for places where space is limited but daily work still demands efficiency and stability.
Farm Work
Agriculture & Livestock Operations
Reliable helper for daily farm work

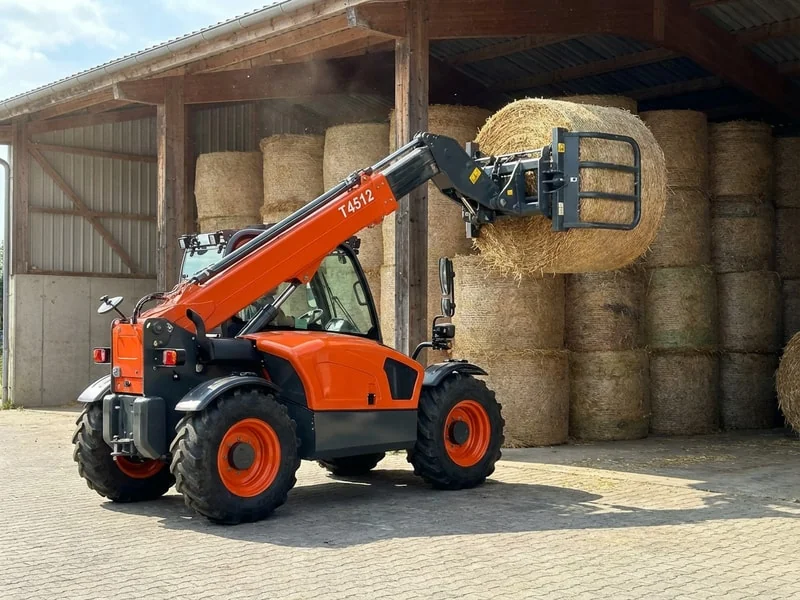

- Bale handling
- Feed and material transport
- Cleaning and maintenance inside barns
Warehouse
Warehouses & Material Handling
More flexible than a forklift, more compact than a standard telehandler

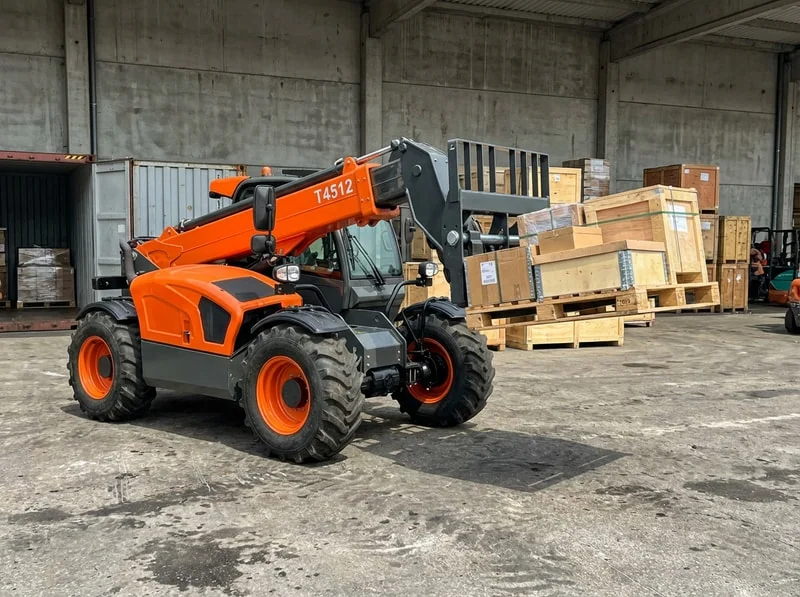

- Pallet loading and stacking
- Material movement in confined areas
- Indoor and outdoor handling

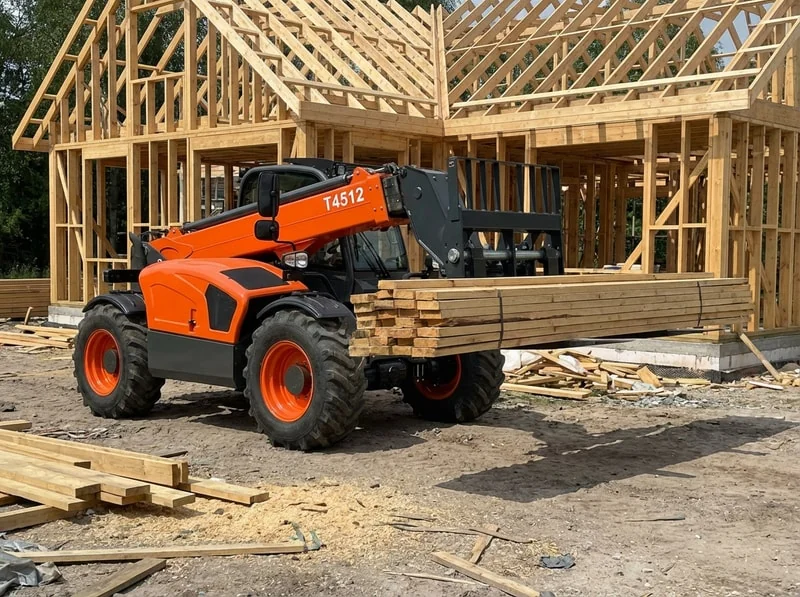

Construction
Light Construction & Urban Job Sites
Perfect for small and medium construction projects
- Loading and unloading construction materials
- Material positioning on site
- Support work on small building projects
Indoor Work
Indoor & Low-Access Operations
Works where standard telehandlers cannot enter

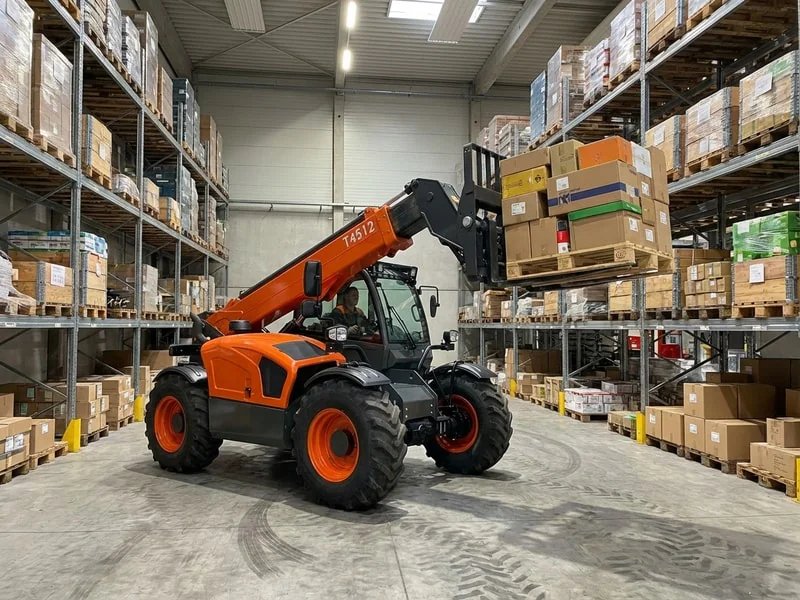

- Indoor material handling
- Maintenance and renovation work
- Operation in low-door or low-ceiling environments
Farm Work
Agriculture & Livestock
Bale handling, feed transport, cleaning and maintenance work inside barns.
Warehouse
Warehouses & Material Handling
Pallet loading, stacking, material movement in confined indoor and outdoor areas.
Construction
Light Construction & Urban Sites
Loading, unloading, material positioning for small and medium building projects.
Indoor Work
Indoor & Low-Access Operations
Works in low-clearance areas, old buildings, workshops where standard telehandlers cannot enter.
Optional Attachments
The following attachments are available upon request and are not included in the standard configuration unless specifically quoted.

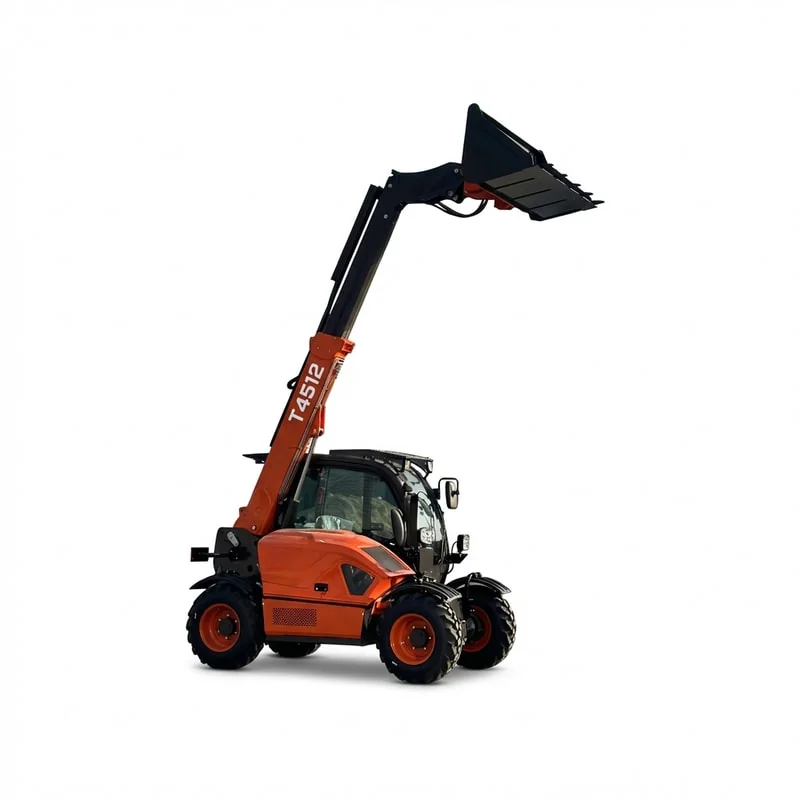

Standard Bucket
Agricultural Bucket
Manure Fork
Brick Clamp
Bale Clamp

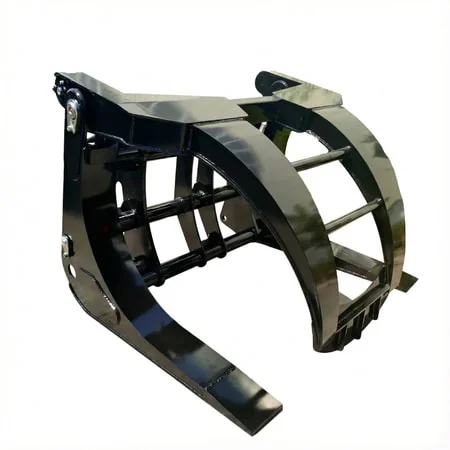

Log Clamp
Man Basket
Jib Hook

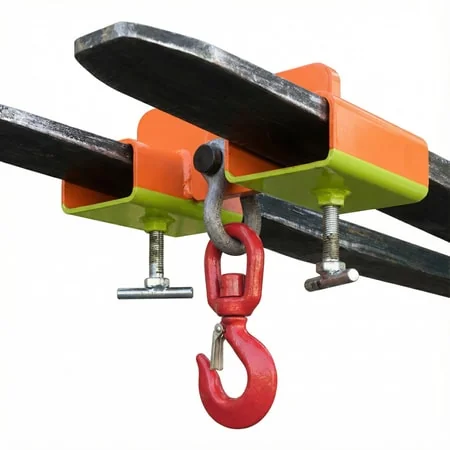

Lift Hook
Hydraulic Winch

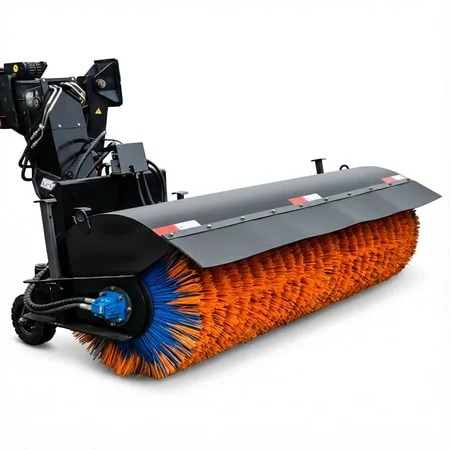

Angled Sweeper
Snow Plow Blade
Snow Blower
Custom Attachments
Available upon request
← Swipe to view more →
Note: Availability, specifications, and compatibility may vary depending on machine configuration and target market requirements.
Standard Bucket
Agricultural Bucket
Manure Fork
Brick Clamp
Bale Clamp
Log Clamp
Man Basket
Jib Hook
Lift Hook
Hydraulic Winch
Angled Sweeper
Snow Plow Blade
Snow Blower
Custom Attachments
Tailored solutions available upon request
Important Note
Availability and compatibility may vary depending on machine configuration and market requirements.

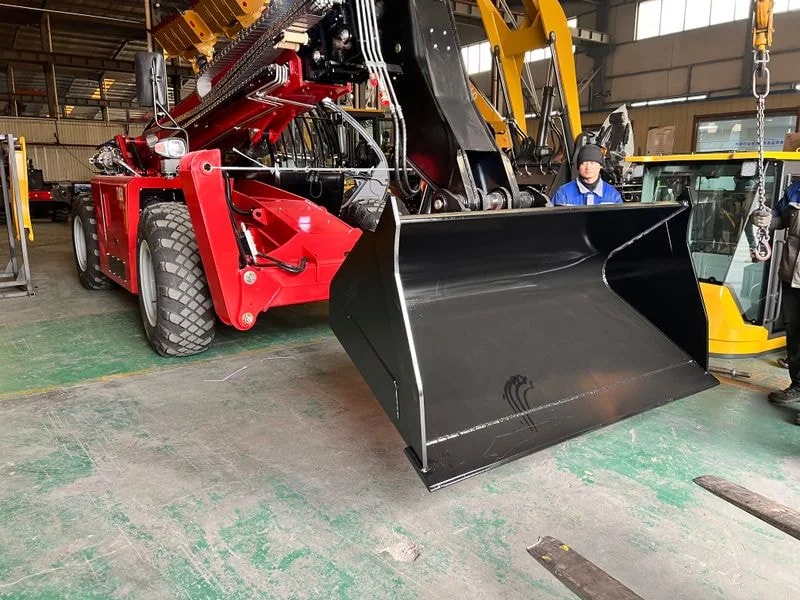

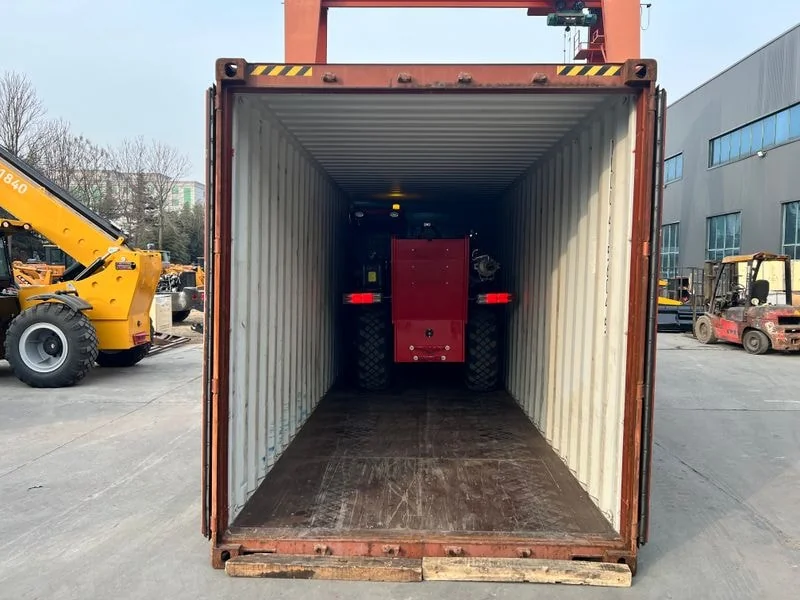

Safe Container Loading & Shipping
Every T4512 is carefully secured inside the container with professional restraint and positioning for safe overseas delivery.
Ask About Shipping
Customization & Options
The T1850 telehandler can be configured according to different market requirements and jobsite applications.
