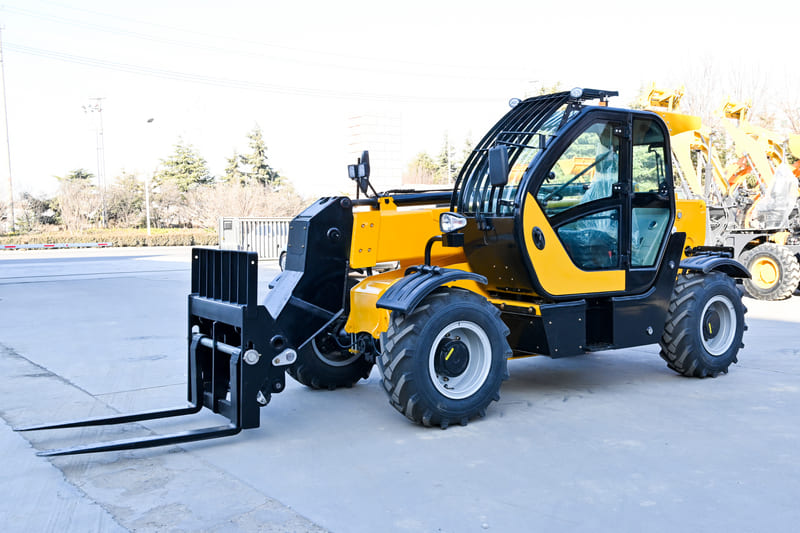

T3507 Telehandler
Heavy-duty telescopic loader engineered for construction, agriculture, and industrial applications. Built with advanced hydraulic systems and certified for global markets with direct factory pricing.
EPA Tier 4 Final
Emission Certified
Advanced Engineering Excellence
Precision-engineered systems delivering unmatched performance, safety, and versatility for demanding industrial applications
Steering System
- ✓ Four-wheel steering for on-road capability
- ✓ Superior maneuverability in tight spaces
- ✓ Crab steering for precision operations
Transmission System
- ✓ Integrated powershift transmission unit
- ✓ 2 forward + 2 reverse powershift positions
- ✓ Full-time 4WD with differential lock
Braking System
- ✓ Pneumatic service brake system
- ✓ Manual disc parking brake
Safety Features
- ✓ FOPS-certified protection structure
- ✓ 72 dB(A) low noise operation
- ✓ All-around tinted safety glass
Boom & Carriage
- ✓ High-strength steel construction
- ✓ Polyurethane bushing sealing
- ✓ Self-leveling carriage system
Operator Cab
- ✓ Comprehensive instrument cluster
- ✓ Adjustable luxury seating
- ✓ Quick-connect attachment system
Versatile Attachment System
Wide range of attachment compatibility including telescopic forks, pallet forks (0.8m to 2.2m), round timber forks, grass forks, and mixing bucket forks for maximum operational flexibility.
See Our Telescopic Loader in Action
Engineered for precision, built for performance. Explore every detail of our advanced telescopic handling solution.

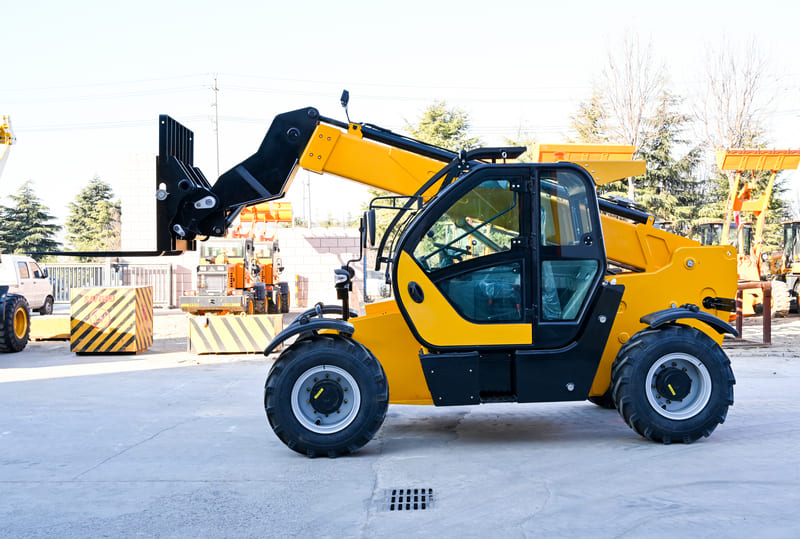

Side Profile View
Complete machine overview
Operator Cab
Advanced control systems
In Operation
Real-world performance
Attachment System
Versatile tool compatibility
Front Stability
Wide stance design
Power System
Engine & hydraulics
Ready to See More Details?
Get complete specifications, pricing, and custom configuration options
Technical Specifications
Detailed technical data for professional evaluation
Dimensions & Performance
| Total Height | 2,300 mm |
| Total Width (including outer tires) | 2,150 mm |
| Interior Width of Cab | 850 mm |
| Front Track | 1,750 mm |
| Wheelbase | 2,350 mm |
| Total Length to Front Tire | 4,200 mm |
| Total Length to Front Carriage | 4,650 mm |
| Ground Clearance | 350 mm |
Lifting Performance
| Maximum Lifting Capacity | 3,500 kg |
| Lift Capacity to Full Height | 2,800 kg |
| Full-Amplitude Lifting Capacity | 1,500 kg |
| Lifting Height | 7.0 m |
| Stroke at Maximum Lifting Height | 450 mm |
| Maximum Forward Distance | 3,600 mm |
| Stroke per Ton of Load | 3,600 mm |
Engine Specifications
| Engine Standards | Stage II National Emission Standards |
| Displacement | 3.76 L |
| Number of Cylinders | 4 |
| Bore | 102 mm |
| Stroke | 115 mm |
| Power at 2400 rpm | 76 kW (103 BHP) |
| Power at 2500 rpm | 74 kW (100 BHP) |
| Torque at 1500 rpm | 300-325 N·m |
| Torque at 1850 rpm | 298-330 N·m |
Hydraulic System
| Operating System Pressure | 210 bar |
| Flow Rate of Main Hydraulic Pump | 110 L/min |
| Boom Lift (no-load) | 10 sec |
| Boom Lower | 7 sec |
| Boom Extend | 12 sec |
| Boom Retract | 8.6 sec |
| Bucket Dump | 3.4 sec |
| Bucket Curl | 4.8 sec |
Capacities & Mobility
| Fuel Tank Capacity | 95 L |
| Hydraulic Oil Tank | 70 L |
| Transmission Oil | 32 L |
| Front & Rear Axles | 26 L |
| Coolant Capacity | 18 L |
| Outer Turning Radius | 4,250 mm |
| Frame Swing-back Angle | 42.6° |
| Loading Inclination Angle | 37.5° |
| Unladen Mass | 8,500 kg |
| Tire Size | 16/70-20 |
| Transmission Speed | 35 km/h |
Optional Engine Configurations
| Configuration | Power Rating | Standards |
|---|---|---|
| Standard Engine | 76 kW (103 BHP) | Stage II |
| Enhanced Engine | 74 kW (100 BHP) | Stage III |
| High-Performance Engine | 81.3 kW (83 BHP) | Stage IV |
Key Performance Highlights
Compliance & Standards
European Conformity
ISO 9001 Quality
Emission Standards
Safety Certified
Application Scenarios
Versatile performance across multiple industries and challenging environments
Construction Site Operations
High-resolution application image
Construction & Building
Essential equipment for modern construction projects requiring precise material placement and high-reach capabilities.
Specific Applications:
- • High-rise material placement
- • Roofing and facade installation
- • Concrete placement operations
- • Steel beam positioning
- • Window and panel installation
Key Benefits:
- • 7.0m reach eliminates scaffolding
- • 3,500kg capacity handles heavy materials
- • Precise hydraulic control
- • All-terrain mobility
- • Quick attachment changes
Mining Operations
Heavy-duty mining application
Mining & Quarry Operations
Robust performance in demanding mining environments with superior reliability and maintenance accessibility.
Mining Applications:
- • Quarry material extraction
- • Heavy equipment maintenance
- • Ore transport and stacking
- • Mining infrastructure support
- • Crusher feeding operations
Performance Features:
- • Dust-resistant hydraulic system
- • Reinforced boom structure
- • Extended service intervals
- • High-capacity cooling system
- • ROPS/FOPS safety protection
Agricultural Operations
Agriculture & Farming
- • Hay and silage handling
- • Barn construction support
- • Feed distribution systems
- • Equipment maintenance
- • Grain storage operations
Industrial Operations
Industrial & Manufacturing
- • Warehouse operations
- • Factory logistics support
- • Heavy machinery installation
- • Port and terminal operations
- • Industrial maintenance
Infrastructure Projects
Infrastructure & Utilities
- • Power line installations
- • Bridge construction support
- • Utility pole placement
- • Road construction projects
- • Emergency response operations
Specialized Applications & Custom Solutions
Emergency Response
Disaster relief operations, emergency construction, rapid deployment scenarios
Marine & Offshore
Port operations, shipyard applications, offshore platform support
Military & Defense
Base construction, equipment maintenance, tactical support operations
Oil & Gas
Pipeline construction, drilling support, refinery maintenance
Application Performance Comparison
| Application | Primary Use | Operating Hours/Day | Load Factor | ROI Period |
|---|---|---|---|---|
| Construction | Material Placement | 8-10 hours | 85% | 12-18 months |
| Mining | Heavy Transport | 10-12 hours | 90% | 10-15 months |
| Agriculture | Seasonal Operations | 6-8 hours | 70% | 18-24 months |
| Industrial | Logistics Support | 8-10 hours | 80% | 15-20 months |
| Infrastructure | Project Support | 6-9 hours | 75% | 16-22 months |
Choose the Right Application Solution
Our experts help you optimize your telescopic loader configuration for your specific industry needs
Application Assessment
Free consultation to determine optimal configuration for your specific use case
Custom Configuration
Tailored attachment packages and specifications to maximize your operational efficiency
Ongoing Support
Comprehensive training, maintenance support, and performance optimization services
Attachments & Options
Transform your telescopic loader into a multi-purpose powerhouse with our comprehensive range of professional attachments and accessories
Need Help Choosing the Right Configuration?
Our equipment specialists will help you select the perfect combination of attachments for your specific applications and maximize your operational efficiency.
Service & Support
Comprehensive support for your investment
2-Year Warranty
Comprehensive warranty coverage for peace of mind
24/7 Support
Round-the-clock technical assistance available
Training Programs
Operator and technician training available
Global Parts Network
Worldwide parts availability and fast delivery
