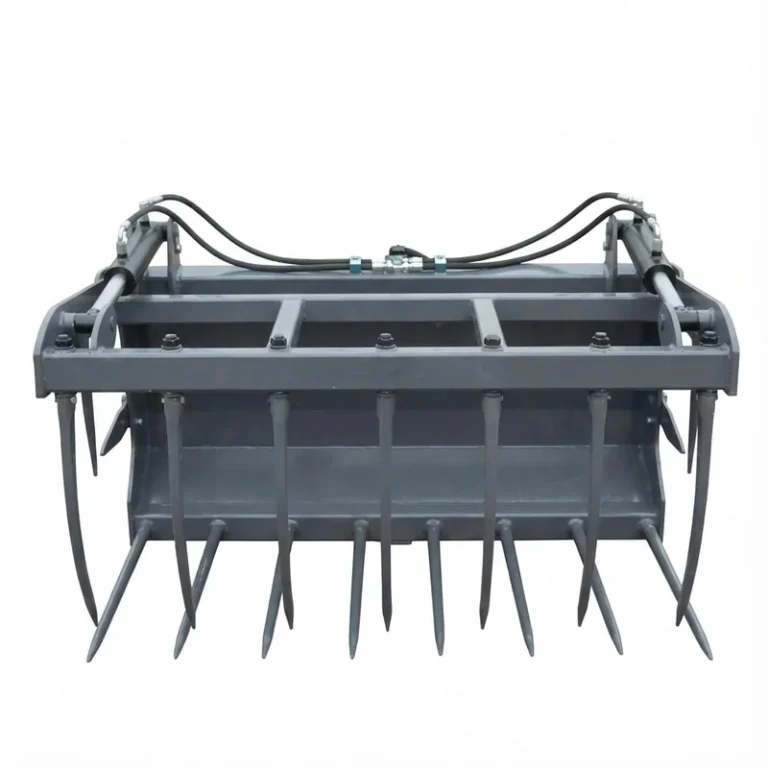

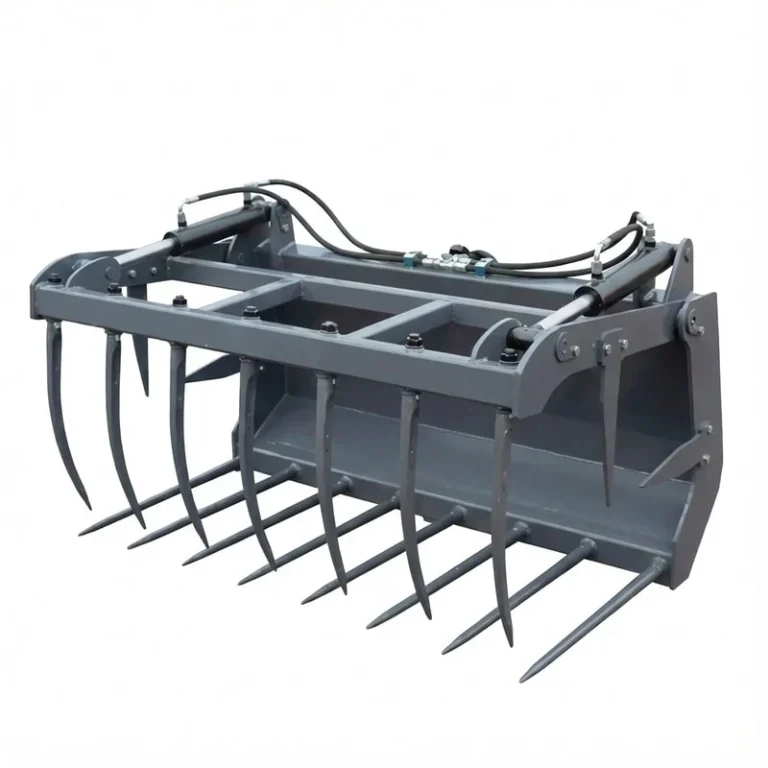

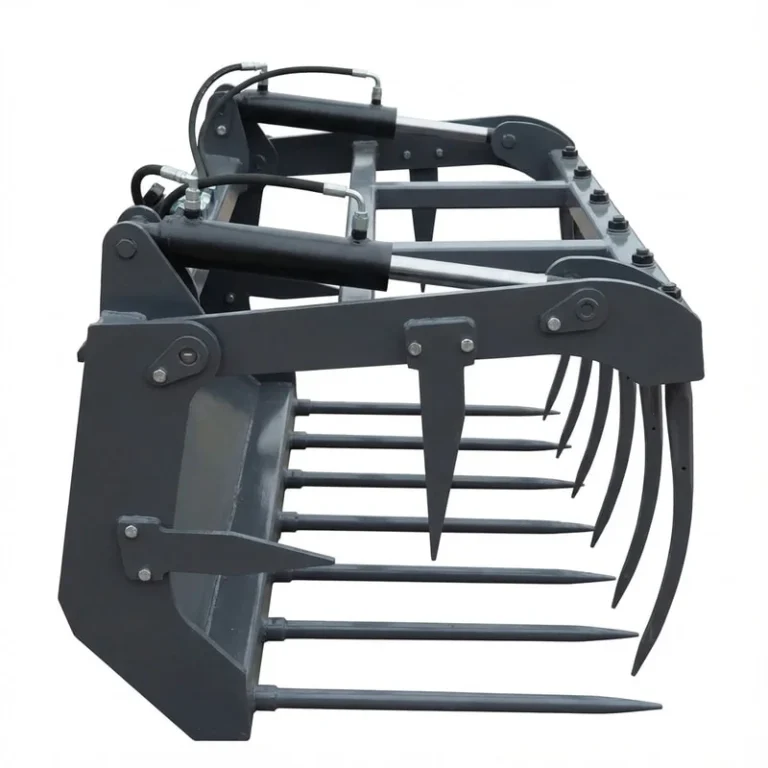

Hydraulic Manure Fork with Grab (Hardox Tines)
Key Specifications
Working Width Options
1830 / 1980 / 2130 / 2290 / 2440 mm
Select based on machine size and application
Grab Opening (Max)
1430 mm
Open grab measurement
Base Tine Length
980 mm
Hardox tines
Grab Tine Length
940 mm
Hardox tines
Grab Hinge Design
3-point hinge arrangement
Stable clamping geometry
Hydraulics
1× double-acting circuit
Hoses supplied to T-piece (as configured)
Mounting Type
Quick Coupler
Compatible Interfaces
Variants
| Model / Variant | Part No. | Capacity | Dimensions | Weight |
|---|---|---|---|---|
| MFG 1830 mm Manure Fork & Grab (Hardox tines) | TELESCRO-MFG-1830 | To be confirmed by host telehandler load chart | Working width: 1830 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm | - |
| MFG 1980 mm Manure Fork & Grab (Hardox tines) | TELESCRO-MFG-1980 | To be confirmed by host telehandler load chart | Working width: 1980 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm | - |
| MFG 2130 mm Manure Fork & Grab (Hardox tines) | TELESCRO-MFG-2130 | To be confirmed by host telehandler load chart | Working width: 2130 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm | - |
| MFG 2290 mm Manure Fork & Grab (Hardox tines) | TELESCRO-MFG-2290 | To be confirmed by host telehandler load chart | Working width: 2290 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm | - |
| MFG 2440 mm Manure Fork & Grab (Hardox tines) | TELESCRO-MFG-2440 | To be confirmed by host telehandler load chart | Working width: 2440 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm | - |
MFG 1830 mm Manure Fork & Grab (Hardox tines)
TELESCRO-MFG-1830
To be confirmed by host telehandler load chart
Working width: 1830 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm
-
MFG 1980 mm Manure Fork & Grab (Hardox tines)
TELESCRO-MFG-1980
To be confirmed by host telehandler load chart
Working width: 1980 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm
-
MFG 2130 mm Manure Fork & Grab (Hardox tines)
TELESCRO-MFG-2130
To be confirmed by host telehandler load chart
Working width: 2130 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm
-
MFG 2290 mm Manure Fork & Grab (Hardox tines)
TELESCRO-MFG-2290
To be confirmed by host telehandler load chart
Working width: 2290 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm
-
MFG 2440 mm Manure Fork & Grab (Hardox tines)
TELESCRO-MFG-2440
To be confirmed by host telehandler load chart
Working width: 2440 mm; Grab opening (max): 1430 mm; Base tine length: 980 mm; Grab tine length: 940 mm
-
Note: Choose working width based on the material type, clamp requirement and the host telehandler load chart. Confirm coupler type and hydraulic hose routing before ordering.

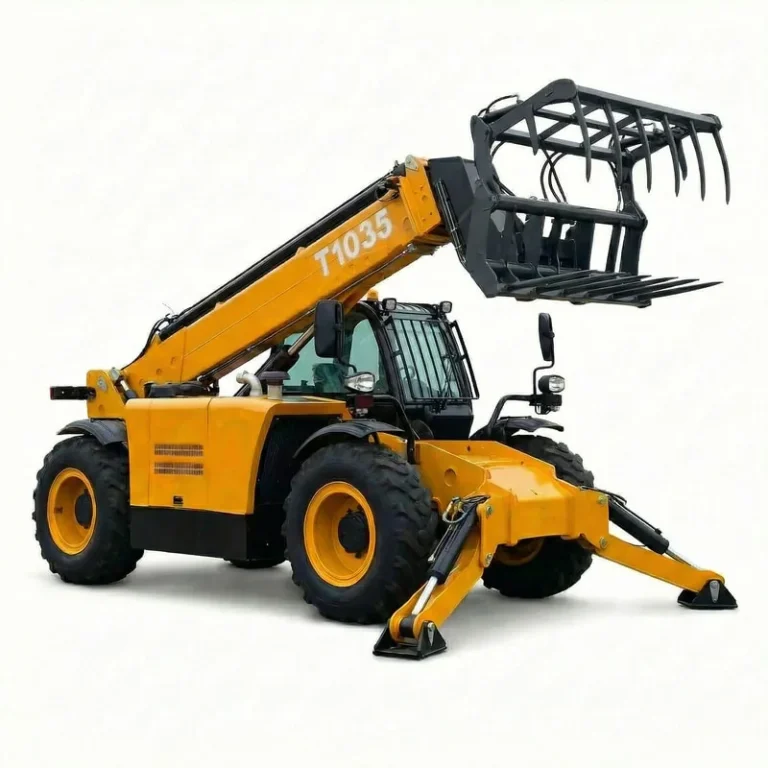

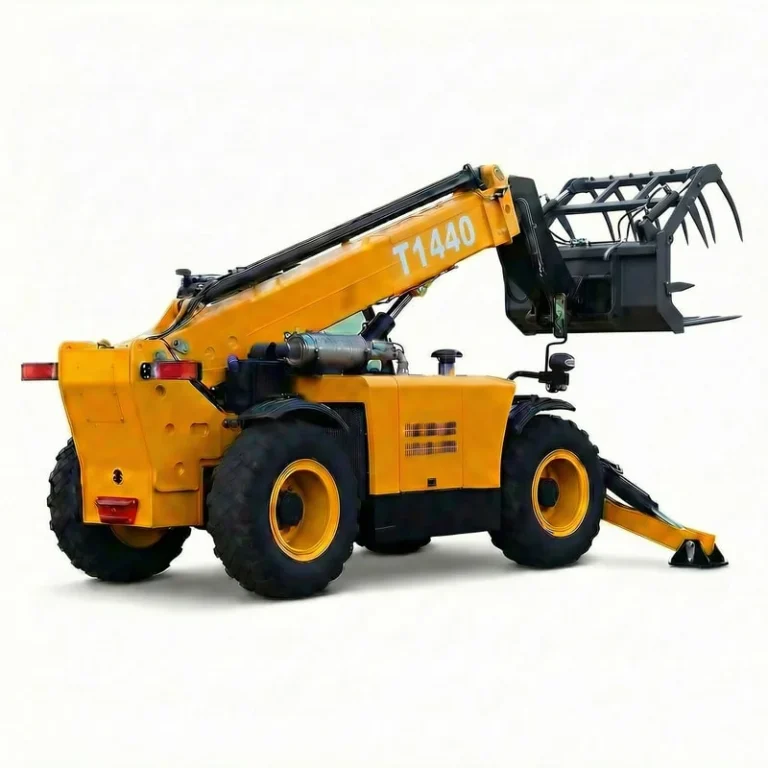

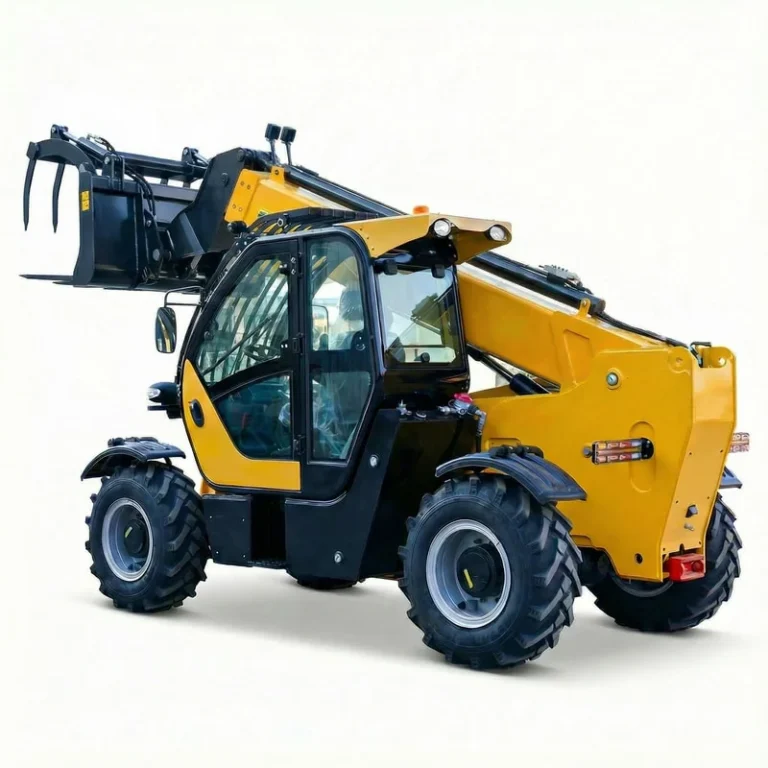

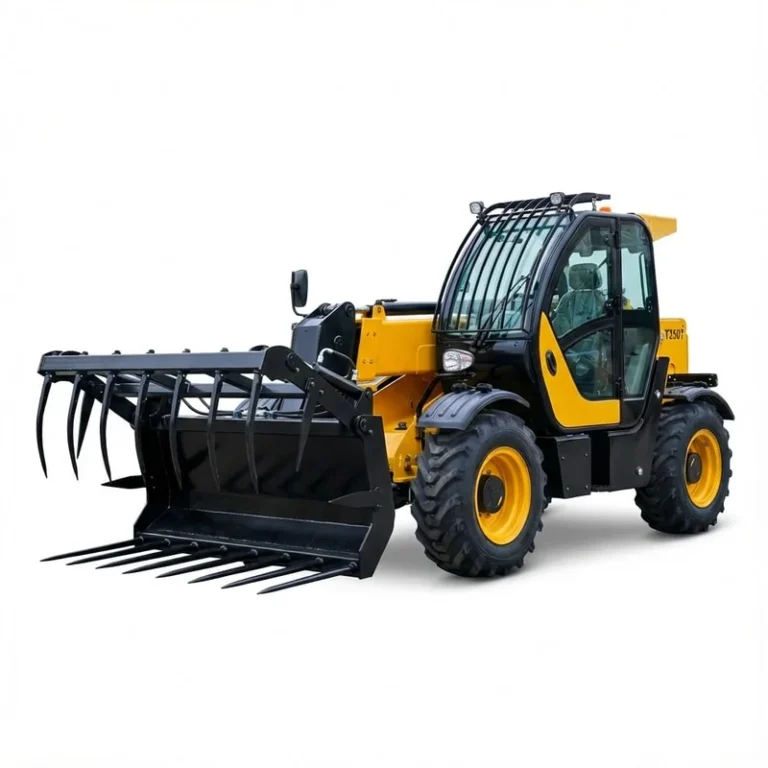

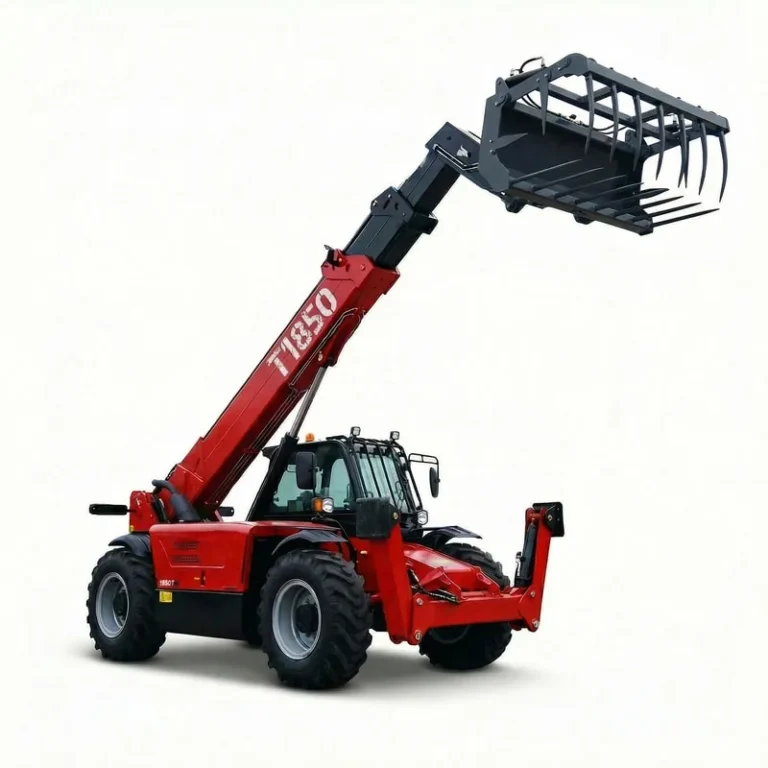

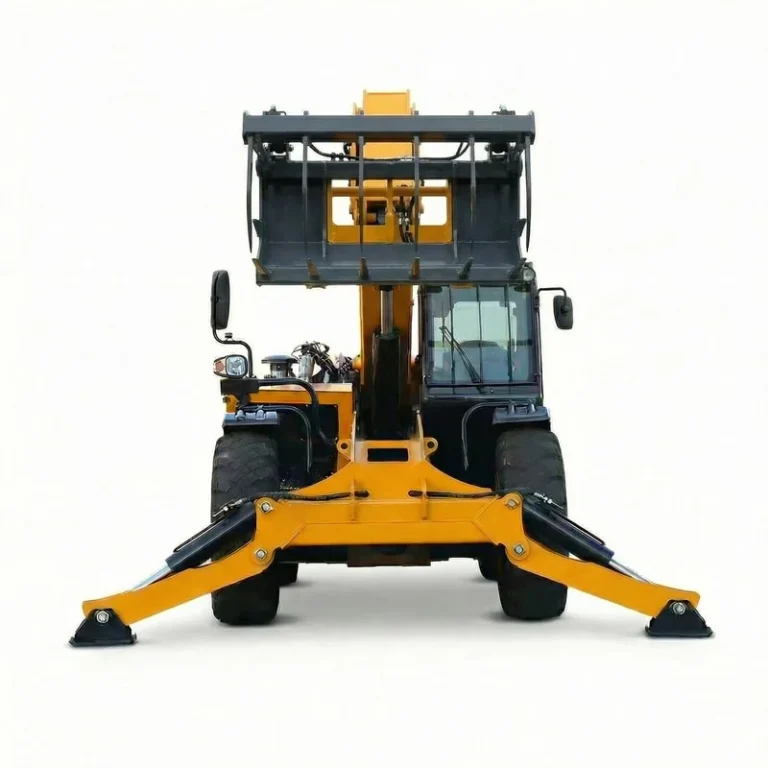

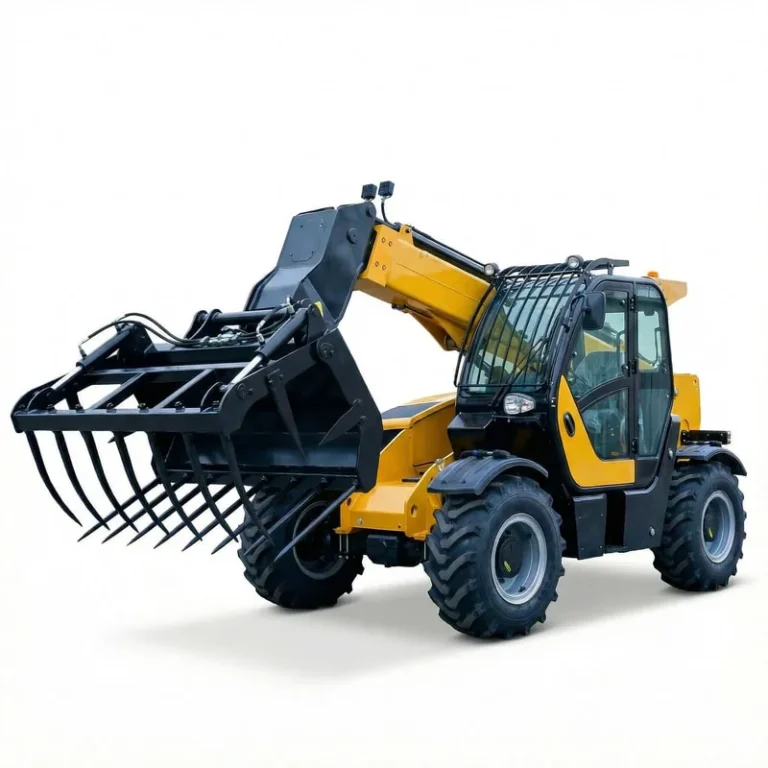

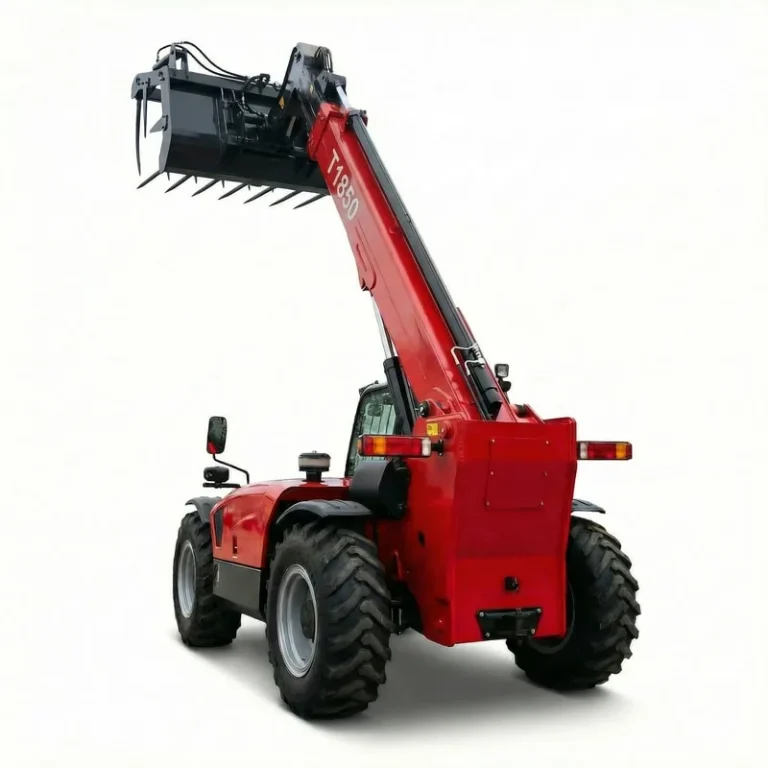

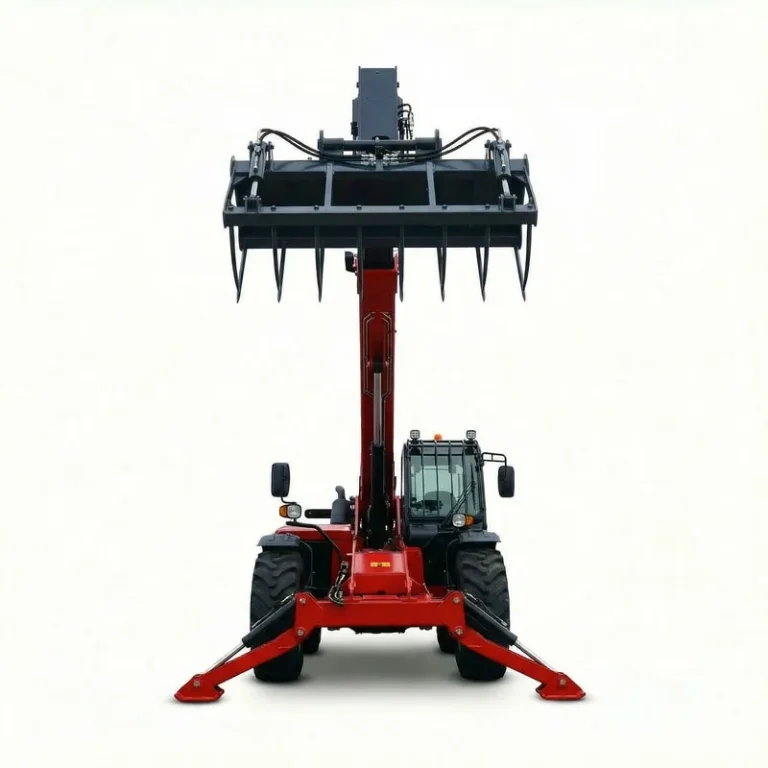

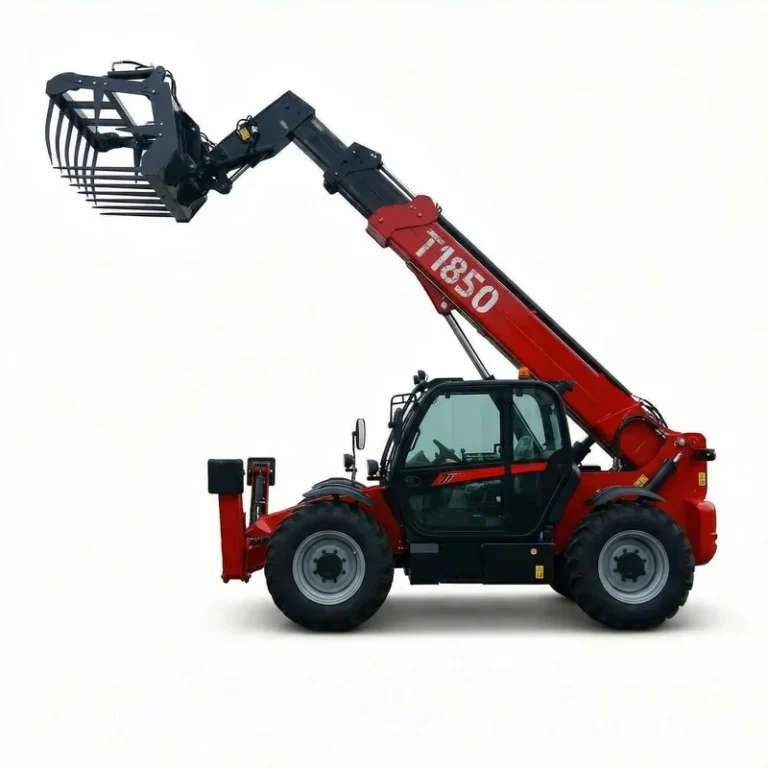

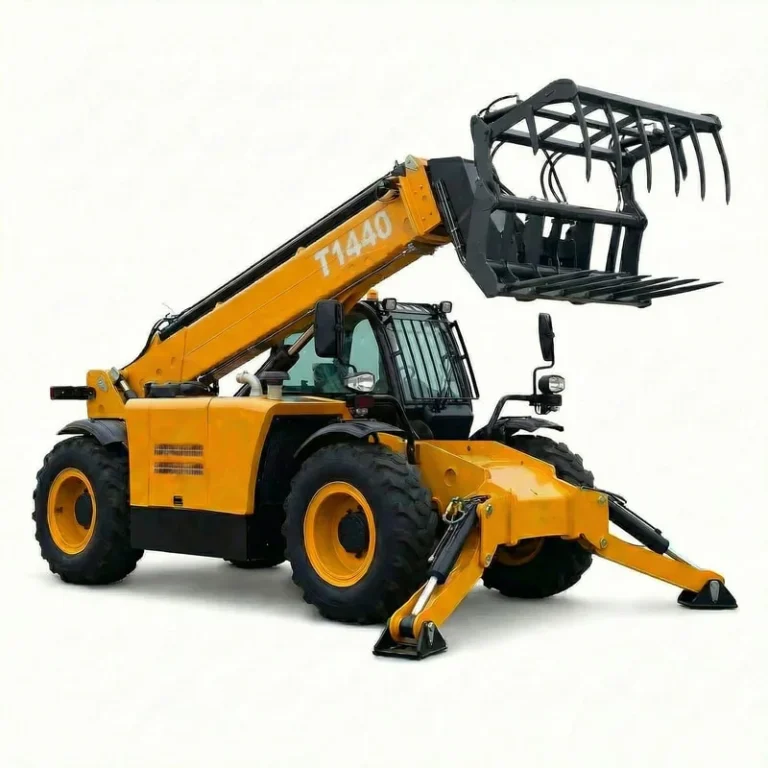

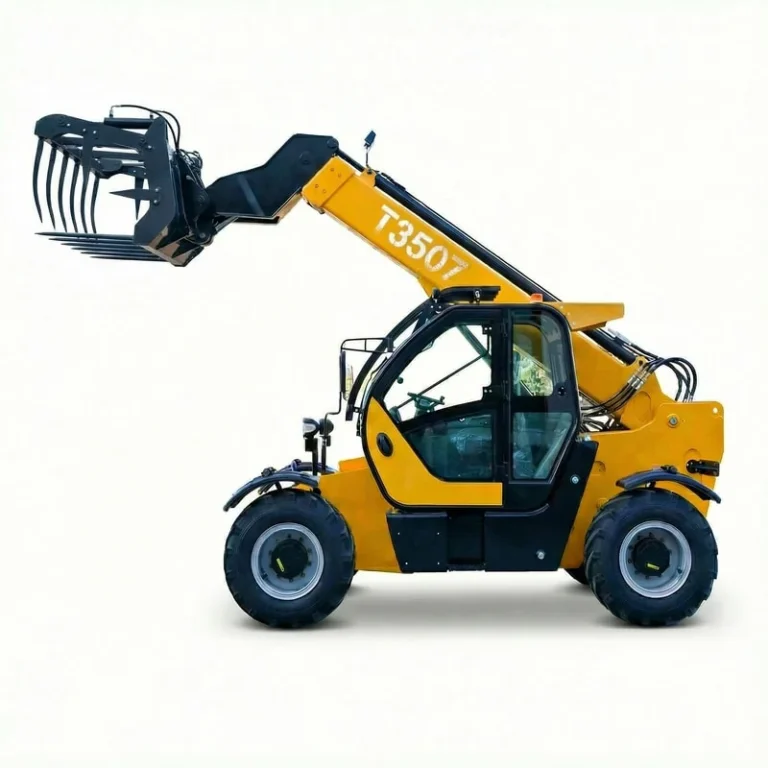

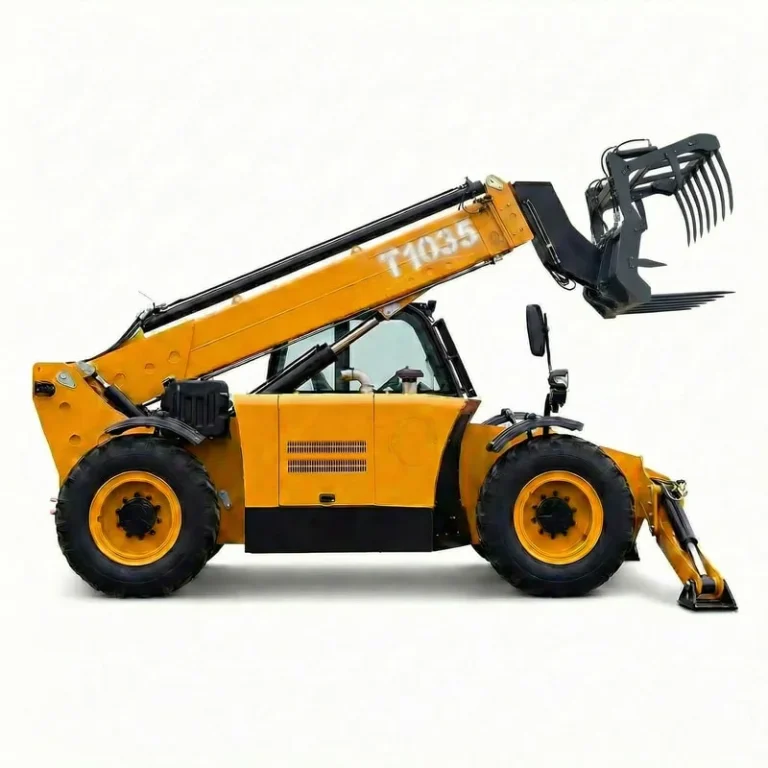

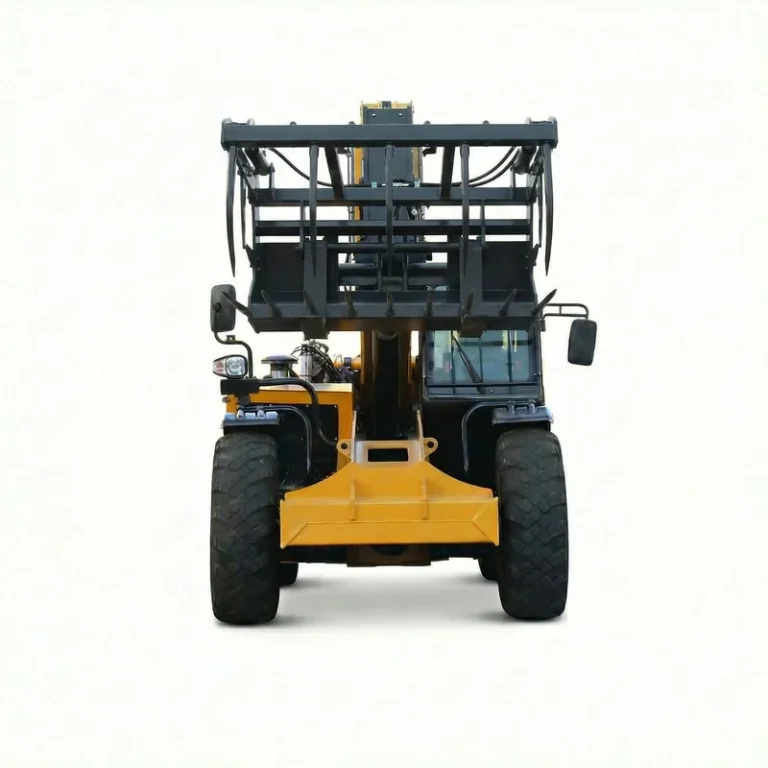

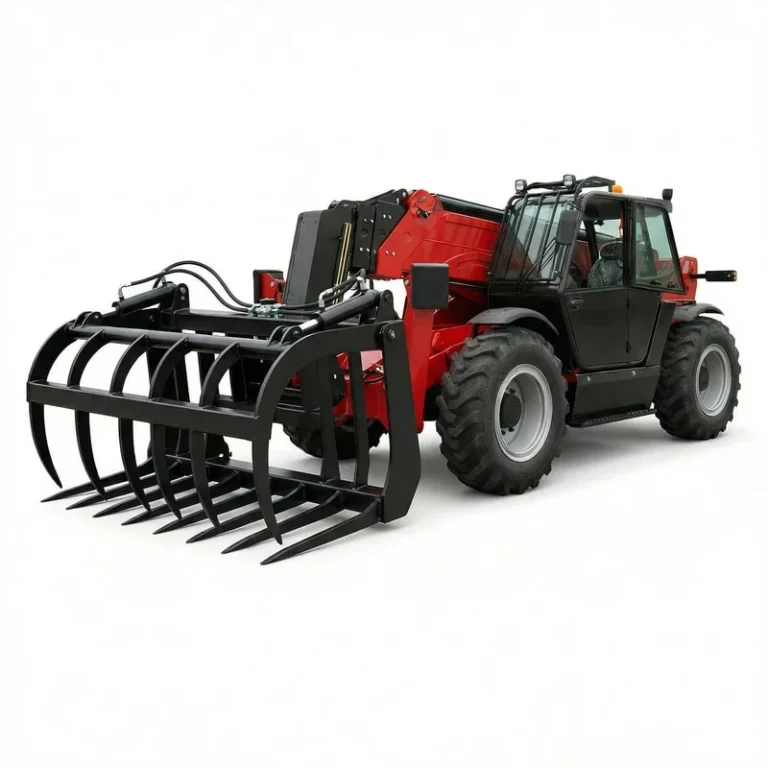

Mounted on Our Telehandlers
See how this attachment works with different Telescro telehandler models. Click a model to browse photos.
Configuration Options
Standard Configuration
- Manure fork main frame with heavy-duty tine rail Box-section reinforced structure
- Hardox base tines Quantity per selected width
- Hardox grab tines Quantity per selected width
- Hydraulic grab assembly (cylinders + hinge system) Double-acting operation
- Hydraulic hoses and fittings Supplied to T-piece (as configured)
- Quick coupler mounting bracket As per confirmed coupler type
- Safety decals and warning labels Standard set
- Product manual English version
Optional Features
- Reinforced frame package For high-cycle or heavy/aggressive materials
- Hydraulic hose protection (sleeves/guards) Improves durability in farm environment
- Custom coupler / mixed-brand interfaces To suit different telehandler fleets
- Custom RAL paint color Upon request
- Replaceable tine specification Hardox grade and tine profile upon request
Hydraulic Requirements
Pressure
TBC (depends on host auxiliary hydraulic circuit)
Flow Rate
Upon request (depends on cylinder size and desired cycle time)
Coupler
Upon request (commonly BSP thread; confirm with host machine)
Hose Length
Upon request
Important Safety Information
Always operate within the host telehandler load chart and attachment limits; never overload the machine. Before use, ensure the quick coupler is fully engaged and mechanically locked, and check all pins/hinges for secure retention. Inspect hydraulic hoses and fittings for leaks or damage; depressurize the auxiliary circuit before connecting or disconnecting. Keep all personnel clear of the attachment and the clamping zone during operation, and never clamp or lift people. Operate smoothly on stable ground and avoid sudden movements when carrying clamped loads.
Actual allowable load depends on the host telehandler and its load chart. Always operate within the host machine's limits.
